Specifications
| Prod Model: | SK200STS |
|---|
Product Description

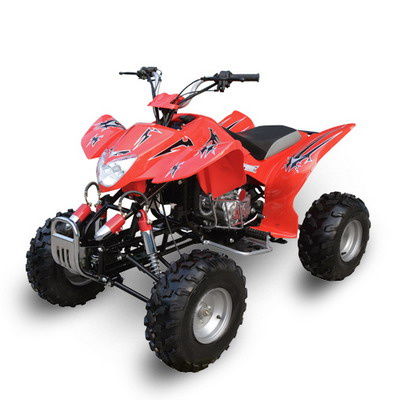

Model No.: SK200STSVehicle specitication:
1) Dimensions(L*W*H)(mm): 1740*985*1100
2) Wheel base(mm): 1050
3) Min. Ground clearance(mm): 120
4) Dry weight(kg): 145
5) Max. Loading weight(kg): 150
6) Max. Speed(kw/h): 80
7) brake method(FR/RR): Drum/disk
8) Tire size(FR/RR): 19*7-8/18*9.5-8
9) Seat height(mm): 760
10) Suspension/Front: Air chamber
11) Suspension/Rear: Air chamber
12) Fuel Capacity: 4.3L
Outer packing: Cartons with steel frame
Dimensions: 1480*850*840mm
Quantity: 21pcs/20', 45pcs/40', 66pcs/40HQ
Engine specitfications:
1) ENGINE type: 200cc, single cylinder; Water-cooled, 4-stroke
2) Bore*stroke(mm): 63*62
3) Compressing ratio: 9.0: 1
4) Max. Power and speed: 11kw/8600rpm(-5%, +5%)
5) Max. Torque(N. M/rpm): 14.5N. M/8000r/min(-5%, +5%)
6) Starting method: Electric
7) Lubrication way: Press and splash
8) Ignition: C. D. I
9) Trasmission: 4-speed
10) Drive train: Chain
