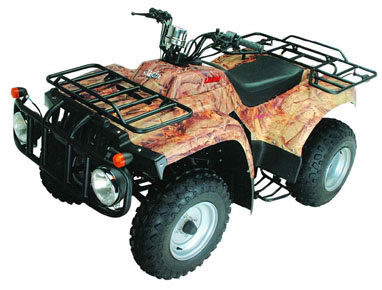

ATV (SA-001)

Specifications

Prod Model:	SA-001

Product Description

Main parameter as well as function index
Length * Width * Height (mm): 1520*920*1000
Wheel Base(mm): 1130
Engine Type: Single Cylinder; Air-cooling; Four stroke
Start Mode: Electric
Power (Kw/r/min): 11Kw/6500r/min
Max Torque (N. M/r/min): 17+5%N. M/6000±500r/min
Max Speed(km/h): 60
Mini Ground Clearance (mm): 150
Dry Weight(Kg): 145
Transmission Mode: Chain
Break Type(F/R): Drum/Disc
Specification: 12N9-BS
Climb Degree: 20
Tank Capacity (L): 4
Front Hanging: Arm-swing
Rear Hanging: Integral
Specification of tyre: Front-wheel drive: 19*7-8
Rear wheel: 18*9.5-8
Cylinder Diameter*Journey(mm): 65.5*66.2
Displacement (ml): 223
Shift Gear: Six Gear
Height of seats(mm): 700
Mini Turning radium(mm): 2000
Parking Trig: Mechanic Lock
Ignition Mode: C. D. I
Loading Capacity(kg): 200
Engine Oil (L): 1.0
Gear Wheel oil (L): 0.2
Person: 1
Lubrication: Press Splash
Compression Proportion: 9.0:1
Gas Cylinder number: 1
Parking Dimension(mm): 1465*835*770
Quantity of loading: 20'GP: 29 units
40' HQ: 64 units
40' HQ: 66 units
