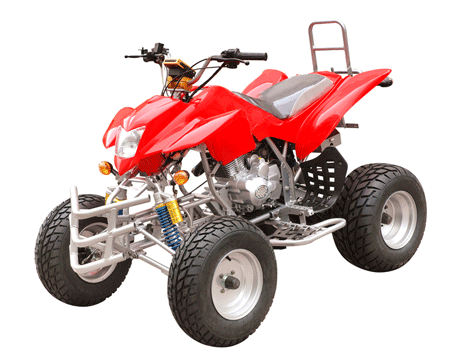

Home Zhejiang Pailision Industry Co., Ltd. ATV/Quad (WJ250ST-4)
Specifications
| Prod Model: | WJ250ST-4 |
|---|
Product Description
250CC, air Cooled EngineLCD Speedmeter
LED Indication Light
Best Air Chamber Absorber
1. Engine type: 250cc, 4 strokes, water cooled
2. Bore and stroke: 72x 69
3. Compression rating: 9.2: 1
4. Max. Torque: 17.5N. M / 5000rpm
5. Max. Power: 15kW / 7500rpm
6. Ignition type: CDI
7. Transmission: Manual clutch, 4-speed, reverse gear, chain
8. Brake (front / rear): Disc / disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm, air chamber shock absorbers
12. Rear suspension details: Air chamber absorber
13. Front tire spec: 21 x 7 - 10
14. Rear tires spec: 20 x 10 - 10
15. Vehicle dimensions: 180 x 110 x 125cm
16. Wheel base: 117cm
17. Seat height from ground: 90cm
18. Ground clearance: 120mm
19. Load capacity: 370kg
20. Fuel tank capacity: 5.4L
21. Gross weight in carton: 190kg
22. Net weight: 170kg
23. Packing size: 148 x 84 x 88cm
Conveyance:
Qty/ 20' GP: 20 units
Qty/ 40' GP: 42 units
Qty/ 40' HQ: 63 units
