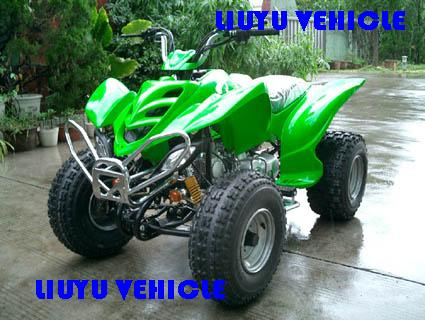

ATV(LYATV-04)

Specifications

Product Description

Model Nr: LYATV-04
Specifications:
1) Engine: 4-stroke, air-cooled, fully-automatic, 110cc,
2) Power: 5.2kW/7, 500rpm
3) Maximum torque: 7.0N. M/7, 500rpm
4) Max. Speed: 48km/h
5) Ground clearance: 110mm
6) Transmission system: Drive chain
7) Brake (front/rear): Drum/disk-brake
8) Starting system: Electric
9) Ignition: CDI
10)Displacement: 107
11)Fuel type: 93#
12)Type (front/rear): 19 x 7-8 / 18 x 9.5-8
13) Front suspension: Double swing arm suspension
14) Rear suspension: Complete suspension
15)Compression ratio: 9.0: 1
16)Cover material: Pp
17)Battery: 12v 9AH
Packing:
Carton dimensions: 1, 460 x 820 x 725mm
N. W.: 125kg
G. W.: 140kg
Conveyance:
Qty/20' FCL: 28pcs
Qty/40' FCL: 64pcs
Qty/40' FCL (HQ): 66cs
