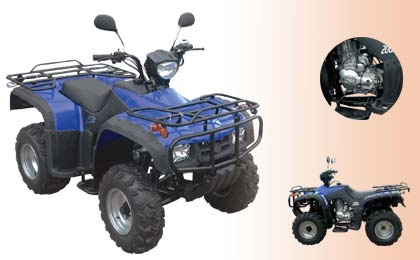

ATV (LD200S-5)

Specifications

Prod Model:	LD200S-5

Product Description

Art. NO.: LD200S-5

Art. NO.: LD200S-5
Wheel Base(mm): 1160
Length *Width * Height (mm): 1850*1030*1130
Engine Type: Air-cooling 4-strokes, single
Transmission Mode: Shaft driven
Start Mode: Electric
Displacement (ml): 197. 0
Cylinder Diameter*Journey(mm): 63. 5*62. 2
Power (Kw/r/min): 10. 5Kw/8000r/min
Max Torque (N. M/r/min): 14. 5N. M/6500r/min
Lubrication: Press Splash
Compression Proportion: 9. 0: 1
Max Speed(km/h): ≥60 km/h
Climb Degree: ≥25
Shift Gear: Five gear manual
Break Type(F/R): Drum/Drum
Specification of tyre: 23*7. 00-10
Rear wheel: 22*10. 0-10
Dry Weight(Kg): 230 kg
Quantity of loading: 20' GP: 12 units
40' GP: 24 units
40' HQ: 36 units
