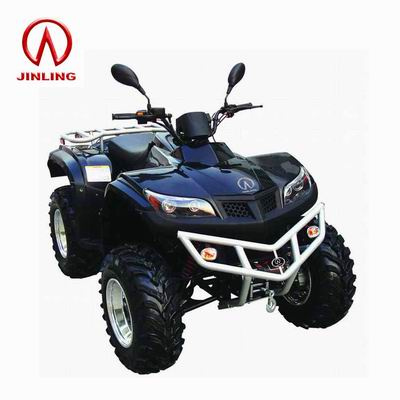

ATV (JLA-821)

Specifications

Prod Model:	JLA-821

Product Description

250cc quad? ?
1. Engine type: 196cc/248cc, 4 storke
2. Max torque: 13.5Nm/5500rpm, 17.5Nm/5000rpm
3. Max power: 10kw/7500rpm, 11kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual clutch, 4-speed, reverse gear, chain/shaft, drive
6. Brake (Front/Rear): Drum/Drum for shaft), Disc(for chain)
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 23 x 7-10 rear tires spec: 22 x 10-10
12. Vehicle dimensions: 208x124x113cm
13. Wheel base: 1160mm
14. Seat height from ground: 90cm
15. Ground clearance: 155mm
16. Load capacity: 165kg
17 fuel tank capacity: 11L
18. Gross weight in carton: 240kg
19. Net weight: 220kg
20. Packing size: 194x109x86cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
