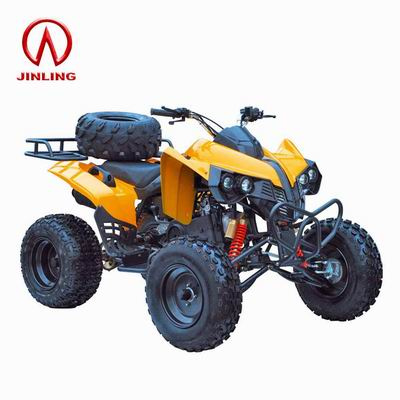

ATV (JLA-816)

Specifications

Prod Model:	JLA-816

Product Description

150cc automatic atv? ?
1. Engine type: GY6-150cc, 4 storke
2. Max torque: 10Nm/5500rpm
3. Max power: 9.3kw/7500rpm
4. Ignition type: CDI
5. Transmission: Automatic
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8
12. Vehicle dimensions: 169x102x108cm
13. Wheel base: 1200mm
14. Seat height from ground: 85cm
15. Ground clearance: 140mm
16. Load capacity: 180kg
17. Fuel tank capacity: 5L
18. Gross weight in carton: 190kg
19. Net weight: 170kg
20. Packing size: 144x88x89cm
Conveyance:
20pcs/20ft
65pcs/40'HQ
