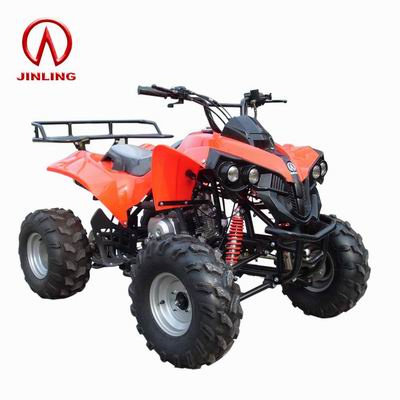

Home Zhejiang Suer Sports Equipment Co., Ltd. ATV (JLA-815)
Specifications
| Prod Model: | JLA-815 |
|---|
Product Description
110CC/125CC ATV1. Engine type: 107CC 124CC
2. Max torque: 6.5/5000rpm, 8.6Nm/5500rpm
3. Max power: 4.7kw/7500rpm, 8.0Kw/7500rpm
4. Ignition type: CDI
5. Transmission: 4-speed, semi-automatic reverse chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8
12. Vehicle dimensions: 155x88x95cm
13. Wheel base: 1000mm
14. Seat height from ground: 75cm
15. Ground clearance: 100mm
16. Load capacity: 140kg
17. Fuel tank capacity: 4.5L
18. Gross weight in carton: 160kg
19. Net weight: 140kg
20. Packing size: 145x83x71cm
