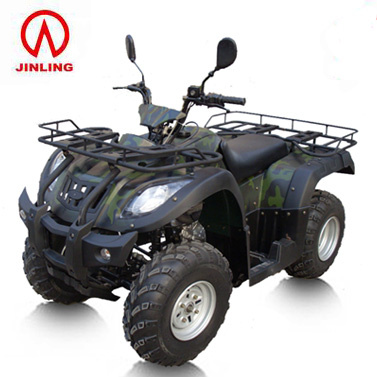

ATV (JLA-25)

Specifications

Prod Model:	JLA-25

Product Description

1. Engine: 250CC, Air Cooled. 4 stroke
2. BoreXSroke: 67x65,
3. Compression rating: 9.2: 1
4. Max torque: 15Nm/5000rpm, 17.5Nm/5000rpm
5. Max power: 10kw/7500rpm, 13.5kw/7500rpm
6. Ignition type: CDI
7. Transmission: Manual clutch, 4-speed, reverse gear, chain
8. Brake (Front/Rear): Disc/Disc
9. Starting system: Electric start
10. Battery spec: 12V, 9AH
11. Front suspension details: Double A x swing arm,: Air chamber shock absorbers
12. Rear suspension details: Inner ballonet absorber
13. Front tire spec: 23x7-10
14. Rear tires spec: 22x10-10
15. Vehicle dimensions: 188x114x112cm
16. Wheel base: 126cm
17. Seat height from ground: 83cm
18. Ground clearance: 120mm
19. Load capacity: 155kg
20. Fuel tank capacity: 9.8L
21. Gross weight in carton: 220kg
22. Net weight: 180kg
23. Packing size: 168x116x87cm
Qty/20' GP 14PCS
Qty/40' GP 28PCS
Qty/40' HQ 42PCS
