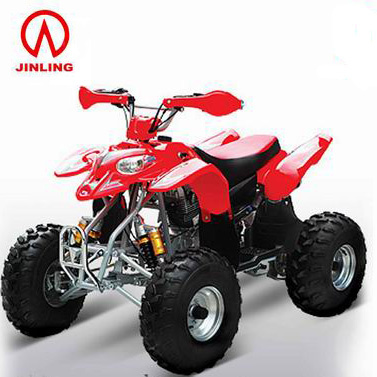

ATV (JLA-18)

Specifications

Prod Model:	JLA-18

Product Description

1. Engine type: 148cc /196cc/ 248cc
2. Max torque: 10Nm/5500rpm, 13.5Nm/5500rpm, 17.5Nm/5000rpm
3. Max power: 9.3kw/7500rpm, 10kw/7500rpm, 11kw/7500rpm
4. Ignition type: CDI
5. Transmission: Manual reverse, chain drive
6. Brake (Front/Rear): Drum/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8
12. Vehicle dimensions: 174X95X109cm
13. Wheel base: 1200mm
14. Seat height from ground: 80cm
15. Ground clearance: 120mm
16. Load capacity: 150kg
17. Fuel tank capacity: 7.8L
18. Gross weight in carton: 150kg
19. Net weight: 130kg
20. Packing size: 152x83x77cm
Conveyance:
30pcs/20ft 66pcs/40ft
66pcs/40'HQ
