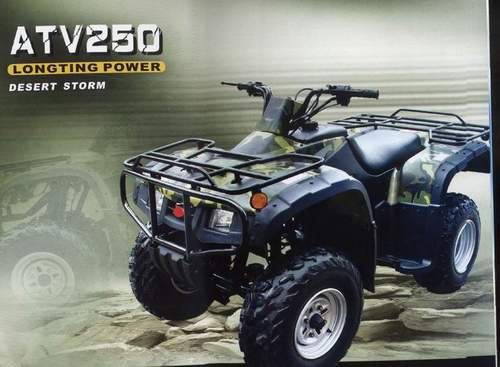

ATV (JL250)

Specifications

Prod Model:	JL250

Product Description

Engine Type: 4-Stroke, Single Cylinder, Air cooled, Fully- automatic
Transmission System: Shaft Drive
Bore*Stroke(mm): 71*58
Displacement(mm): 229.6
Max Power(Kw/r/min): 10/6000-7000
Max Torque: 15/5500-6500
Starting system: Electric/Recoil backup
Transmission: 5 Speed, semi-automatic
Engine Oil(L): 1.6
Gear Oil(L)0. 27
Seat height(mm): 810±20
Min Turning Radius(mm): 2900
Ground Clearance(mm): 155
Brake(Front/Rear): Drum/Drum
Front Tyre: At23X7-10
Rear Tyre: At22X10-10
Ignition Type: CDI
Fuel Tank(L): 12
Front Suspension: Independent Front Suspension
Front Suspension: Swing Arm
Battery: 12V-14Ah
Parking Brake: Mechanical Lock
Pay Load(Kg): 165
Net Weight(Kg): 220
Rider Capacity: 1 Person
Wheel Base(mm): 1160
Lubrication: Pressing Splash
Overall Length(mm): 1940
Overall Width(mm): 1050
Overall Height(mm): 1160
