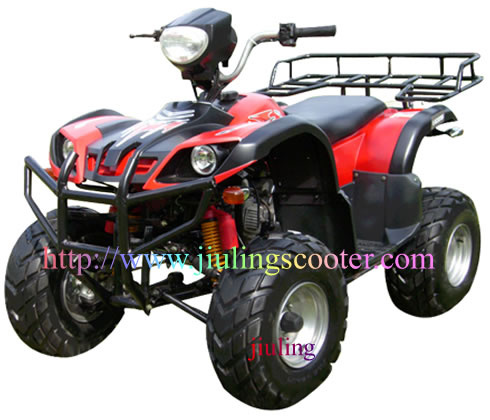

ATV JL110ST-18

Specifications

Prod Model:	JL110ST-18

Product Description

Engine Type Single Cylinder,4 Stroke, Air-Cooled
Engine Displacement(Ml) 107
Bore X Stroke(Mm) 52.4*49.5
Max Power (Kw/(R/Min)) 6/8000
Max Torque(N.M/R/Min) 7/6000
Compression Ratio 9.0:1
Lubrication Oil Capacity(L) 0.9
Minimum Fuel Comsumption (G/Kw.H) 365
Transmission:
Start Mode Electrical
Transmission Mode Chain
Brake Mode(Front/Rear) Drum/Disc
Front Hanging: Double Arm -Swing
Rear Hanging: Integral
Brake Distance(M/30km) 7
Shift Speed Tpye Four Gear With Reverse Gear (3-2-1-N-R)
Clutch Mode Auto Clutch
External Condition:
Length Xwidth X Height(Mm) 1730x920x1050
Minimum Turning Radius(Mm) 3000
Climbing Degree 30
Lamp Head Lamp
Seat Height(Mm) 800
Wheel Base(Mm) 1110
Front Track(Mm) 760
Rera Track(Mm) 680
Minimum Ground Clearance(Mm) 150
Top Speed(Km/H) 55
Fuel Capacity(L) 7.8
Tyre Dimension(Front/Rear) At19x7-8/At18x9.5-8
Battery 12v 9a
Cover Material Pp
Color Red/Blue/White/Yellow/Black

Packing:
Carton dimensions: 1520 x 820 x 780mm
N.W. 135KG
G.W. 155KG
Conveyance:
Qty/20' GP 30pcs
Qty/40' GP 63pcs
Qty/40' HQ 63pcs
