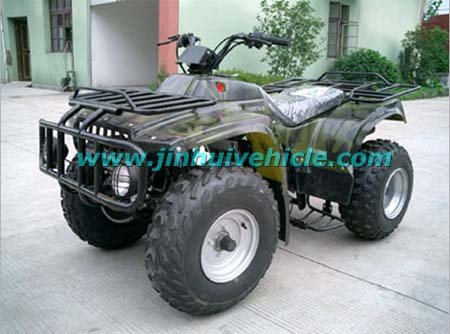

Home Yongkang Jinhui Vehicle Co., Ltd. ATV (JH-ATV06)
Specifications
| Prod Model: | JH-ATV06 |
|---|
Product Description
1) Dimensions: 1880 x 1050 x 1080mm2) Engine type: 4-stroke, air cooled, single-cylinder (shaft drive), 250CC
3) Transmission: 5 speeds, semi-automatic
4) Model: 253Fmm
5) Compression ratio: 9. 2: 1
6) Displacement: 233. 9ml
7) Top speed: 80km/h
8) Max power: 13kW/8500r/min max Torque: 15N. M/7000r/min
9) Ground clearance: 170mm
10) Starting system: Electric
11) Brake (front/rear): Drum/drum
12) Tire (front): 21 x 8-10
13) Tire (rear): 22 x 10-10
14) Ignition type: C. D. I.
15) Lubrication: Pressuring splash
16) Battery: 12V-14Ah
17) Engine oil: 15W40-SE
18) Engine oil capacity: 1. 6L
19) Net weight: 170kg
20) Rider capacity: 1 person
21) Fuel tank capacity (L): 12
22) Front suspension: Independent
23) Rear suspension: Swing arm
24) Parking brake: Mechanical lock
25) Colors: Red, yellow, blue, green, black and camouflage
Packing:
Carton dimensions: 1950 x 950 x 900mm
Conveyance:
Qty/20' FCL: 12 sets
Qty/40' HQ: 36 sets
