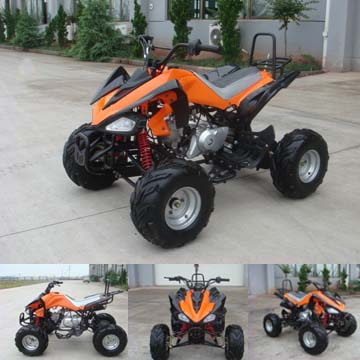

ATV (JC-50)

Specifications

Prod Model:	JC-50

Product Description

1) Dimensions (L x W x H): 1230 x 635 x 830mm
2) Wheelbase: 850mm
3) Seat height: 580mm
4) Min. Ground clearance: 120mm
5) Rated loading: 80kg
6) Max. Speed: 35km/h
7) Tires:
A) Front wheels: 14.5 x 7 - 6
B) Rear wheels: 14.5 x 7 - 6
8) Break type (F/R): Drum/disc
9) Fuel tank capacity: 3.0L

10) Power source: 12V, 3Ah
11) Min. Turning radius: 1510mm
12) Engine type: 50/70/90/110CC, single cylinder, air-cooling, 4-stroke, full automatic
13) Cylinder size: 47 x 41.4mm
14) Compression proportion: 8.8: 1
15) Displacement: 49ml
16) Max Power: 3.5kW/8000r/min,
17) Max. Torque: 4.5N. M/ 5500r/min
18) Transmission mode: Chain
19) Engine oil: 0.8L
20) Ignition mode: CDI
21) Lubrication: Press splash
22) Start mode: Electric

Outer packing:
Carton dimensions: 1270 x 760 x 646mm

Conveyance:
Qty/20' GP: 39units
Qty/40' GP: 81 units
Qty/40' HQ: 108units
