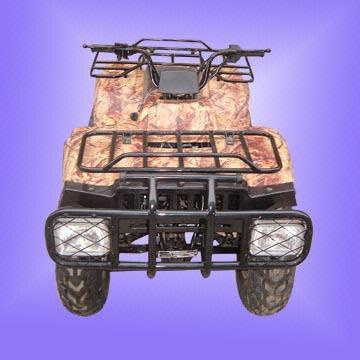

ATV(FYA-002A)

Specifications

Prod Model:	FYA-002A

Product Description

FYA-002A(250cc)
Features:
1) Displacement:233.9ml
2) Max Load capacity:120kg (264.6lbs)
3) Fuel tank capacity:12L
4) Gear oil capacity:1.6L
5) Front Suspension:Independent
Rear Suspension:Swing arm
6) Engine oil:15W40-SE engine oil
7) Overall Dimensions:(L*W*H):1880*1050*1080
8) Wheel base:1180mm
9) Width of Whell track:780mm
10) Ground clearance:170mm
11) Kerb mass:213kg (470 lbs)
12) Steering Bar angle:30°
13) Top speed:80km/h (49.7miles/hr)
14) Front Tyre:21*8-10
Rear Tyre:22*10-10
15) Front brake:Mechanical drum
Rear brake:Mechanical drum
16) Engine Model:253FMM
Type:4 -stroke, paralleled 2-cylinder, air cooled
17) Compression Ration:9.2:1
18) Ignition Mode:CDI
19) Lubrication:Press/splash
20) Max Power:13kw/8500r/min
21) Max Torque:15N·m/7000r/min
22) Idle speed:1400r/min
23) Start way:Electric start
24) Battery:12V-14Ah
25) Parking brake:Mechanical Lock
