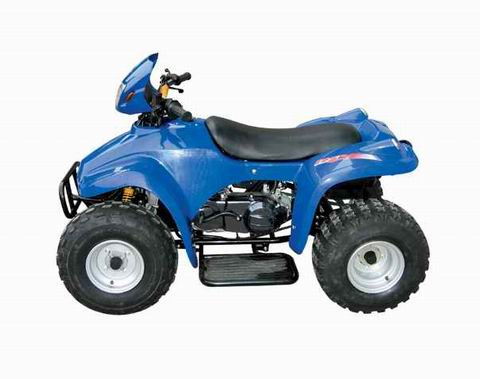

Home Chongqing Waitan Co., Ltd. ATV (CY125ST)
Specifications
| Prod Model: | CY125ST |
|---|
Product Description
LxWxH(mm): 1610x10x010wheel base(mm): 900
Min.Ground clearance (mm): 110
Rim type: spoke/alloy
Dry weight(kg): 105
Fr. Tyre size and air pressure: 20?-8/200kpa
Rr. tyre size and air pressure: 20?-8/225kpa
Fr. Brake: disk/drum Rr. brake: drum
Max.loading capacity(kg): 100
Max. Speed (km/h): 50
Engine type: single-cylinder, forced air-cooled,four-stroke
Bore x Stroke (mm): 52.4x57.8
Displacement (ml): 124
Compression ratio: 9.2:1
power (kw/r/min): 5.25/7500
Max.torque (N.m/r/min): 8/6000
starting mode: Electric Start/Kick Start
Ignition mode: CDI
package: Iron and Seven-layer carton
