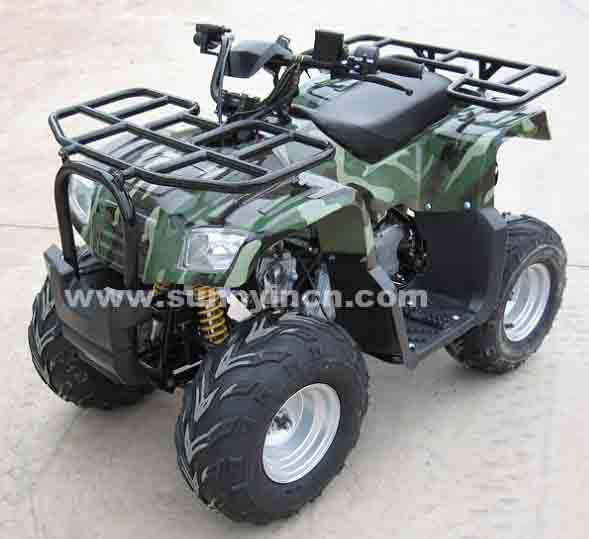

Home Sunny Industries Co., Ltd ATV (CTATV-04)
Specifications
| Prod Model: | CTATV-04 |
|---|
Product Description
1) ENGINE Type: Air cooled,4-stroke2) Displacement: 90/110cc
3) Max Power: 4.0kW/7500rpm
4) Max Torque: 5.6Nm/6000rpm
5) Compression Ratio: 9.1:1
6) Lubrication: Pressure and Splash
7) TRANSMISSION: Stepless,automatic clutch,chain
8) Front/rear Supension: Double A-arm/ Swing arm
9) Rear brake: Rear Hydraulic disc
10) Front/rear Tyre: 16*8-7/16*8-7
11) DIMENSION(L*W*H)(mm): 1230*730*900
12) Seat Height: 640mm
13) Turn Radius: 1500mm
14) Ground Clearance: 105mm
15) Dry Weight: 65kg
16) Max Speed: 50km/h
17) Container: 120pcs/40'HQ
