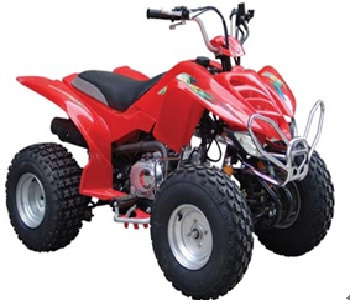

ATV -CHY110L (Dinosaur)

Specifications

Prod Model:	CHY110L (Dinosaur)

Product Description

ENGINE:
Engine Type: Single-tank, 4-stroke, air cooled
Bore and Stroke: 52.4 x 50
Ignition: C.D.I
Starter: Electric recoil backup
Piston Displacement: 107.8(ml)

DRIVE TRAIN:
Graded System: Speed adjustment
Driveline: Chain drive
CHASSIS/SUSPENSION/BRAKES
Front Suspension: Single arm
Front / Rear Brakes: Drum/drum.
Front Tires: 19x7-8
Rear Tires: 18x9...5-8
Maximum Power (kw/r/min): 5.2/7500
Maximum Torque: 7.0/5000

DIMENSIONS:
Length/ Width/ Height: 1560 x 860 x 910(mm)
Axle Base: 1040(mm)
Wheel Base (Front/Rear): 715/640(mm)
Dry Weight: 113(kg)
Max Load: 120(kg)
Seat Height: 670(mm)
Compression Ratio: 9.0: 1
Minimum Turning Radius: 2400(mm)
Minimum Ground Clearance: 113(mm)
Container: 30units/20GP, 66units/40HQ

OTHER:
Battery: 12V-7AH
Fuel Tank Capacity: 7L
