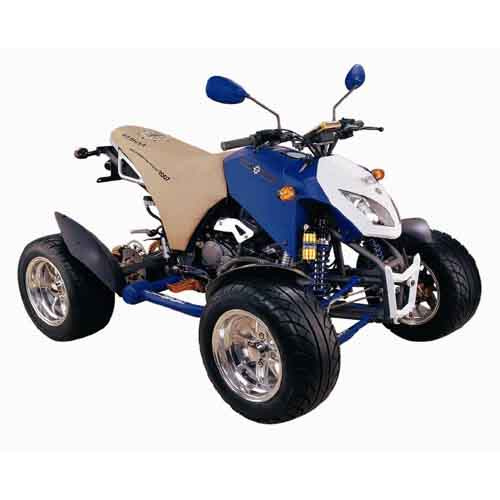

Home Chongqing CCo., Limited ATV (BY300S-18)
Specifications
| Prod Model: | BY300S-18 |
|---|
Product Description
SpecificationENGINE
Type: Single cyclinder, oil-cooling, four-stroke,
Starting way: Electrical /manual
Rated power(kW/r/min): 13KW/7000r/min
Oil tank(L): 8L
Bore*stroke(mm): 75*62
Displacement(ml): 273.9
Gears: Four forward gears, one reverse, manual clutch
Parking trig: Mechanical
Ignition: CDI
Transmission: Chain drive
Max. Torque(N. M/r/min): 20N. M/5500r/min
Max. Speed(km/h): ≥85km/h
Min. Ground clearence(mm): 130mm
Engine oil(L): 1
Product weight(Kg): 235Kg
Battery size: 12V14Ah
Climb ability: ≥20
Lubrication: Press splash
Compression: 8.67: 1
Cylinder numbers: 1
Min. Turning radius(mm): 3200
Chasis
Seat Height(mm): 860
Brake: F. /R. Chain disc
F. Suspension: Dual swing-arm, dual ballonet absorbers
R. Suspension: Inseted single ballonet absorber
Wheelbase: F. /R.: 215/50-12
Dimensions
Max. Loading(kg): 170kg
Passengers: 2
Caton dimension(mm) 1700*1150*880
Others
Conveyance: Qty/20' GP: 12 units
Qty/40' GP: 28 units
Qty/40' HQ: 42 units
Color: Red/yellow/blue/green/camouflage
