Home Wiztem Industry Company Limited ATV (AT1112)
ATV (AT1112)
| Price: | US $ 570.50-586.70/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | AT1112 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Digital Speed Display: | 150CC Engine Is Optional |
| Transmission System: | Chain Drive |
| Transmission Type: | Automatic |
| Certification: | CE |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 110CC |
Product Description

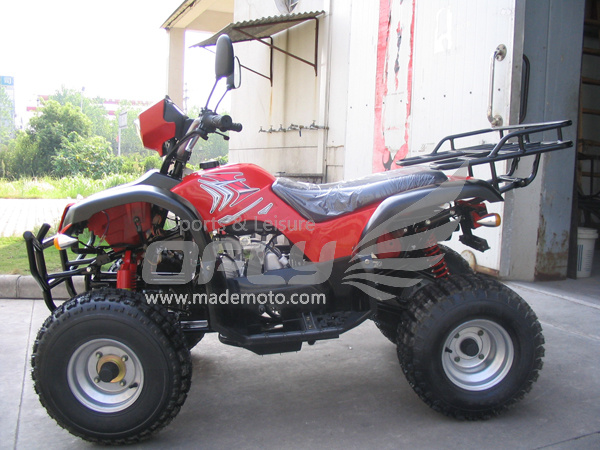

ATVGas-Powered 4-Stroke 110cc Engine ATV with Front Double-arm Hanging
AT1112-A
Key Specifications:
Wheel number: 4
Piston displacement: 110cc
Fuel tank volume: 7.8liters
Fuel type: pure oil
Ignition method: electric
Engine type: single cylinder, 4-stroke, air-cooled
Speed: four gear with reverse gear (3-2-1-N-R)
Max speed: 55km/h, 35miles/h
Brake: front: drum brake, rear disc brake
Transmission: chain drive
Wheel size: front: AT19X7-8i; rear: AT18X9.5-8
Product dimensions: 1730x920x1050mm
Minimum ground clearance: 150mm
Minimum turning radius: 3000mm
Wheelbase: 1100mm
Seat height: 800mm
Parking bake: mechanical lock
Climbing capacity: 30 degrees
Color available: red, blue, black, yellow, white
Package: Carton Packing
Net weight: 135kgs/297lbs
Gross weight: 155kgs/341lbs
Carton size: 124x77x63cm/1pc
Container: 39pcs/20',63pcs/40',70pcs/40'HQ
Special Features:

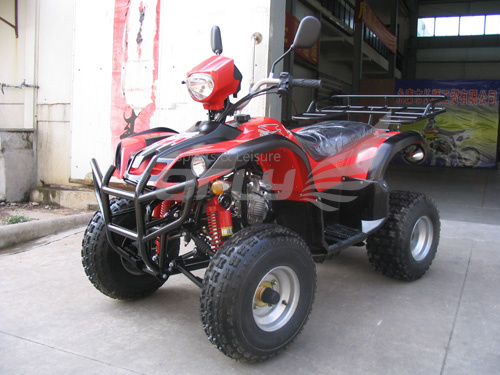

Front head lamp

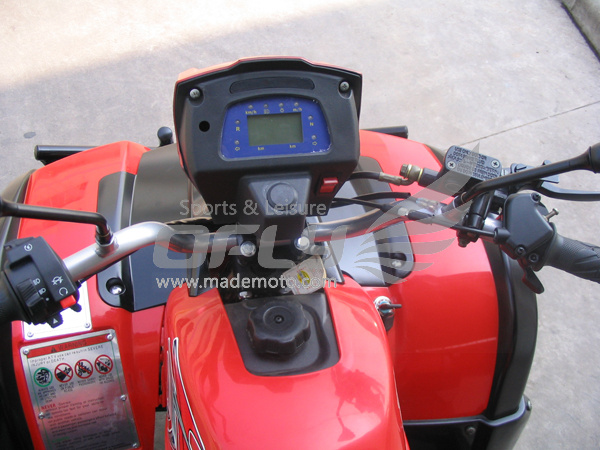

Digital speed display
150cc engine is optional
