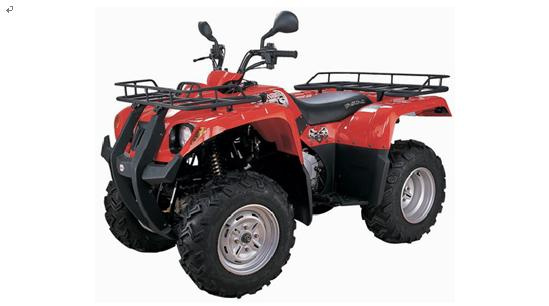

ATV and ATV Tyres (CK400S (4WD))

Specifications

Prod Model:	CK400S (4WD)

Product Description

CK400S (4WD)
Engine
Type: Single cylinder, oil-cooling, 4-stroke (4WD)
Ignition mode / Start mode: CDI / electric / manual
Fuel tank capacity / Engine oil: 14L / 2.9L
Transmission mode: Axis
Power / Power source: 16kW / 6, 500rpm / 12V, 20Ah

Max. Torque: 26N. M / 5, 000rpm
Min. Ground clearance: 210mm
Transmission: 5 gears with 1 reverse gear, automatic clutch
Displacement: 387.4ml
Parking trig: Mechanical lock
Chassis
Front wheels / Rear wheels: 25 x 8-12 / 25 x 10-12
Break type (F/R): Disc / drum
Front hanging: Double arm-swing
Dimensions
Product dimensions: 2, 100 x 1, 125 x 1, 175mm
Carton dimensions: 2, 150 x 1, 160 x 880mm
Wheelbase: 1, 240mm
Height of seats: 860mm
Dry weight / Load capacity: 330kg / 220kg
Climbing degree: 22 degree
Min. Turning radius: 2, 900mm
Max. Number of riders: 2
Conveyance: Qty/20 GP: 10 units
Qty/40 GP: 22 units
Qty/40 HQ: 33 units
