Specifications

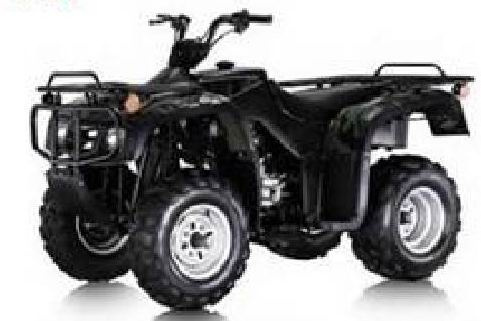

Prod Model: | ACE250ATV |
---|
Product Description
ATV (ACE250ATV)1. engine type :248cc,4 storke |
2. max torque :17.5Nm/5000rpm |
3. max power :11kw/7500rpm |
4. ignition type :CDI |
5. transmission :manual clutch,4-speed,reverse gear,chain/shaft,drive |
6.Brake (Front/Rear):Drum/Drum for shaft),Disc(for chain) |
7. starting system :Electric start |
8. battery spec :12V,9AH |
9. front suspension details :double A x swing arm |
10. rear suspension details :mono shock swing arm |
11. front tire spec : 23 x 7-10 rear tires spec : 22 x 10-10 |
12. vehicle dimensions :208x124x 113cm |
13. wheel base : 1160mm |
14. seat height from ground : 90cm |
15. ground clearance : 155mm |
16. load capacity : 165kg |
17 fuel tank capacity : 11L |
18. gross weight in carton : 240kg |
19. net weight : 220kg |
20. packing size:194x109x 86cm |
