Home Aceheritage Limited ATV (ACE200ATV)
Specifications
| Prod Model: | ACE200ATV |
|---|
Product Description

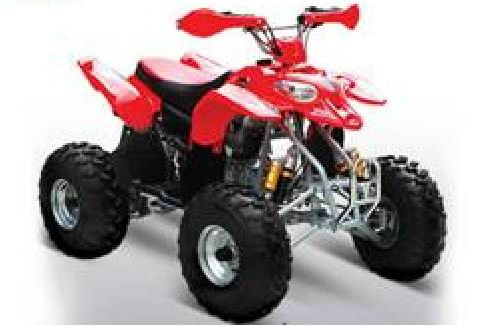

ATV (ACE200ATV)| 1. engine type :196cc |
| 2. max torque :13.5Nm/5500rpm |
| 3. max power :10kw/7500rpm, |
| 4. ignition type :CDI |
| 5. transmission :manual reverse, chain drive |
| 6.Brake (Front/Rear):Drum/Disc |
| 7. starting system :Electric start |
| 8. battery spec :12V,9AH |
| 9. front suspension details :double A x swing arm |
| 10. rear suspension details :mono shock swing arm |
| 11. front tire spec : 19x7-8. rear tires spec : 18x9.5-8 |
| 12. vehicle dimensions :174X95X 109cm |
| 13. wheel base : 1200mm |
| 14. seat height from ground : 80cm |
| 15. ground clearance : 120mm |
| 16. load capacity : 150kg |
| 17. fuel tank capacity : 7.8L |
| 18. gross weight in carton : 150kg |
| 19. net weight : 130kg |
| 20. packing size:152x83x 77cm |
