Home Aceheritage Limited ATV (ACE150ATV-1)
Specifications
| Prod Model: | ACE150ATV-1 |
|---|
Product Description

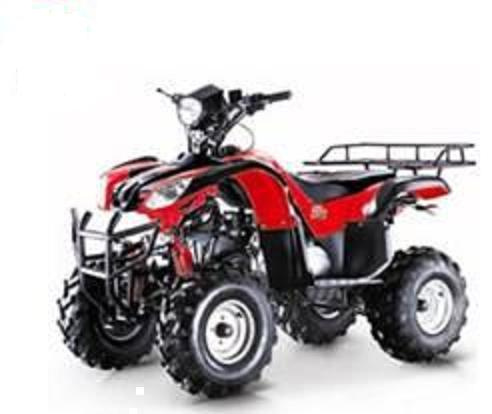

ATV (ACE150ATV-1)| 1. engine type :GY6-150cc,4 storke |
| 2. max torque :10Nm/5500rpm |
| 3. max power :9.3kw/7500rpm |
| 4. ignition type :CDI |
| 5. transmission :automatic |
| 6.Brake (Front/Rear):Drum/Disc |
| 7. starting system :Electric start |
| 8. battery spec :12V,9AH |
| 9. front suspension details :double A x swing arm |
| 10. rear suspension details :mono shock swing arm |
| 11. front tire spec : 19x7-8 rear tires spec : 18x9.5-8 |
| 12. vehicle dimensions :155x88x 95cm |
| 13. wheel base : 1000mm |
| 14. seat height from ground : 75cm |
| 15. ground clearance : 100mm |
| 16. load capacity : 140kg |
| 17. fuel tank capacity : 4.5L |
| 18. gross weight in carton : 160kg |
| 19. net weight : 140kg |
| 20. packing size:147x83x 77cm |
