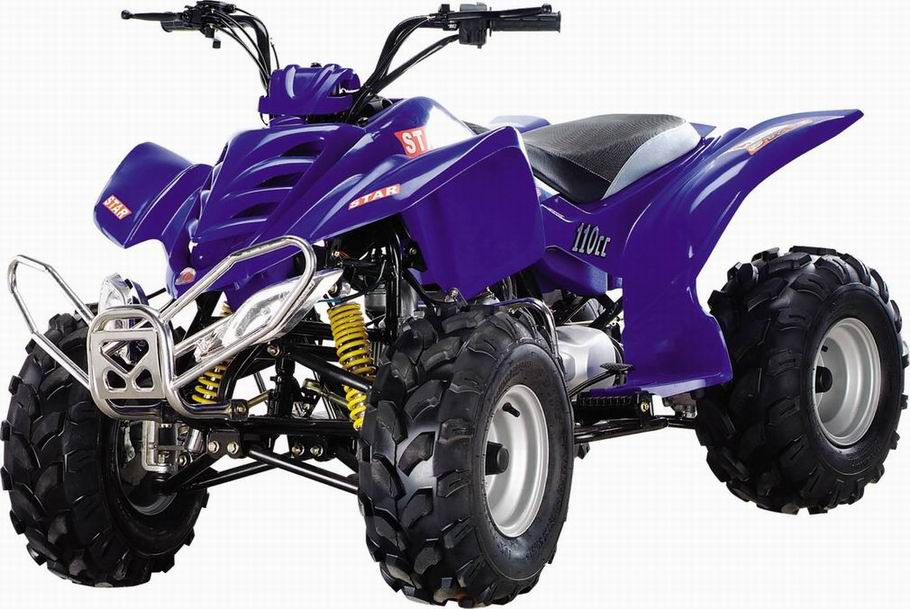

Home Aceheritage Limited ATV (ACE110ATV)
Specifications
| Prod Model: | ACE110ATV |
|---|
Product Description
ATV (ACE110ATV)| 1. engine type :107cc,4 storke |
| 2.Max. power (kW/r/min): 5.2/7,500 |
| 3. Max. toque (N.m/r/min): 7.2/8,000 |
| 4.Ignition method: CDI |
| 5. transmission :automatic,chain |
| 6.Brake (Front/Rear):Disc/Disc |
| 7. starting system :Electric start |
| 8. battery spec :12V,4AH |
| 9. front suspension details :double A x swing arm |
| 10. rear suspension details :mono shock swing arm |
| 11. front tire spec : 16X8-7 rear tires spec : 16X8-7 |
| 12. vehicle dimensions :130x70x 80cm |
| 13. wheel base : 880mm |
| 14. seat height from ground : 60cm |
| 15. ground clearance : 100mm |
| 16. load capacity : 75kg |
| 17. fuel tank capacity : 3.2L |
| 18. gross weight in carton : 95kg |
| 19. net weight : 73kg |
| 20. packing size:132x74x 60cm |
