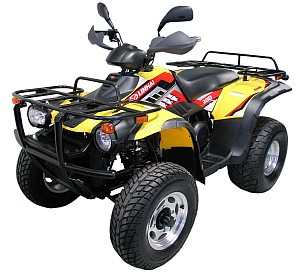

ATV (300cc, EEC)

Specifications

Prod Model:	300cc

Product Description

We are mainly maufacturing and exporting ATV (All Terrain Vehicle), from 50cc-520cc(4x4)and spare parts. If you are interested in our products and need more information, pls feel free to contact with me. I will make your offer promptly.

The main technical specifications for ATV 260cc with EEC homologation (US version, European version, Euro2) as following:
Single Cylinder: OHC Liquid Cooled 4-Cycle
Displacement: 260cc
Starting System: Electric
Fuel Capacity: 3. 75 gallons
Oil Capacity: 1. 25 quarts
Spark Plug: NGK DR8EA

Transmission
Type: CVT Automatic, Hi-Lo Range Forward w/Reverse
Drive: 2WD&4WD/Shaft
Tires & Wheels: Front: Steel Rim, AT 24 x 8 x 12"
Rear: Steel Rim, AT 24 x 11 x 10"

Brakes
Front-Hand Operated Hydraulic Double Disc
Rear-Hand Operated w/Foot Back Up Single Disc

Frame: 1" HREW Steel Tube
Finish: Baked Powder Coat/Black

Suspension
Front: Independent
Dual Coil Over Hyd. Struts w/6" Travel
Rear: Swingarm
Adj. Coil Over Hyd. Shock w/7" Travel

Body: Polypropolene Silver Metallic/Black

Dimensions
Curb Weight: 616 lbs.
Towing Capacity: 450 lbs.
Utility Rack Capacity: Front-50 lbs. /Rear-75 lbs.

Seat Height: 34"
Turning Radius: 13' Diameter
Vehicle: Overall Length 82 1/2 "
Wheelbase: 49 3/4"
Width: 46"
Height: 46"
Ground Clearance: 7 1/4"

Lights
Front: Dual Hi-Lo Headlight
Rear: Single Brakelight

Instrumentation
Dash Mount Indicators Neutral/Reverse
Hi Beam/Fan

Now available color: Blue, Silver, grey, green, red, black, yellow, camouflage color
Packing: Inner Packed By Iron Frame; Outer Packed By Seaworth Carton
8 units for 1x20"container, 27units for 1 x 40"HC
