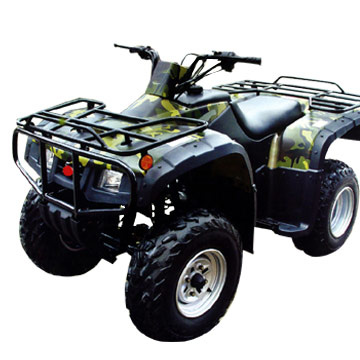

Home China Sun-Power Co., Ltd. ATV 250CC (SF-A-05)
Specifications
Product Description
1) Engine type: 4-strokes, air cooled fully automatic 250CC2) Transmission system: Shaft drive
3) Bore x stroke (mm): 71 x 58
4) Piston displacement (ml): 229.6
5) Maximum power (kw/r/min): 10/6000-7000
6) Maximum torque (km/r/min): 15/5500-6500
7) Starting system: Electric/recoil backup
8) Transmission: 5-speed, semi automatic
9) Seat height (mm): 810+/-20
10) Min turning radius (mm): 2900
11) Ground clearance (mm): 155
12) Brake (front/rear): Drum/drum
13) Tire (front): AT23 x 7-10
14) Tire (rear): AT22 x 10-10
15) Ignition type: C. D. I
16) Fuel tank capability (L): 12
17) Front suspension: Independent front suspension
18) Rear suspension: Swing arm
19) Parking brake: Mechanical lock
20) Battery: 12V-14AH
21) Max load capacity (kg): 165
22) Engine oil capacity (L): 1.6
23) Gear oil capacity (L): 0.27
24) Dry weight (kg): 220
25) Rider capacity: 1 person
26) Wheel base: 1160
27) Overall height (mm): 1160
28) Lubrication: Pressuring splash
29) Overall length (mm): 1940
30) Overall width (mm): 1050
31) Compression ratio: 8.7: 1
32) Cylinder arrangement: Single cylinder
