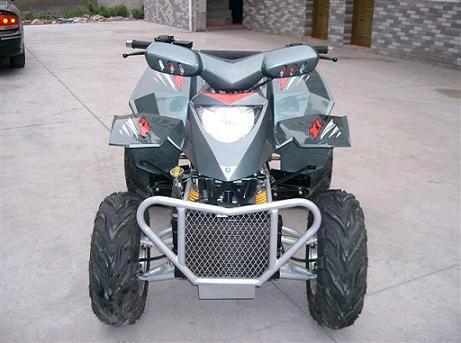

ATV 220

Specifications

Prod Model:	MXF-ATV220

Product Description

ATV220 with inventory in our USA warehouse
Dimension (LxWxH): 1710mm*1100mm*1120mm
Proper Mass of Empty Vehicle: 170kg
Max speed: 60km/h
Distance between axles: 1100mm
Distance between front wheels: 830mm
Distance between rear wheels: 780mm
Ground clearance: 150mm
Specification of Front Wheel: 21/7-10,50Kpa
Specification of Rear Wheel: 21/9-8,50Kpa
Type of Engine: 4-stroke, single cylinder.
bore*stroke: 69mmx63mm
Efficient Capacity: 235ml
Rated Power and Rotate Speed: 10.5KW/8000r/min
Max Torque and Rotate Speed: 13.5/6000-6500r/min
Compressing Ratio: 9.6: 1
Gearshift Model: Five Speed, Axle transmission, reverse gear
Starting System: Electrical Starting
Cooling System: water Cooling
Tank fuel capacity: 7.5L
Gross weight: 190KG/205KG
