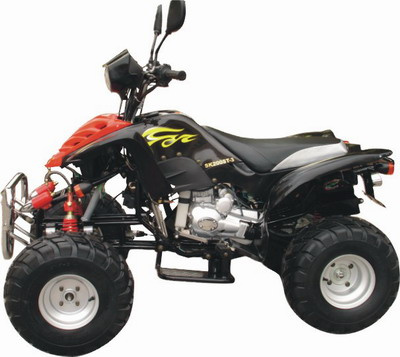

ATV (200ST EEC)

Specifications

Prod Model:	200ST EEC

Product Description

Specifications:
1) Engine type: Single cylinder, water-cooled, 4-stroke
2) Displacement (ml): 193
3) Loading capacity (kg): 200
4) Person: 1
5) Max. Speed (km/h): ≥50
7) Transmission mode: Shaft
8) Break type (F/R): Drum/drum
9) Climb degree: 20
10) Min. Turning radium (mm): 2, 400
11) Tank capacity (L): 4
12) Start mode: Electric
13) Front hanging: Double A-arm
15) Rear hanging: Integral
16) Shift gear: Five gears with reverse gear manual clutch
17) Parking trig: Mechanic lock
18) Ignition mode: CDI
19) Engine oil (L): 1
20) Gear wheel oil (L): 0. 2
21) Lubrication: Press splash
22) Compression proportion: 9. 2: 1
23) Specifications of tire:
A) Front wheel: 19 x 7-8
B) Rear wheel: 18 x 9. 5-8
24) Cylinder diameter x journey (mm): 63. 5 x 62. 2
25) Wheelbase (mm): 1, 000
26) Min. Ground clearance (mm): 140
27) Height of seats (mm): 700
28) Dry weight (kg): 145

Outer packing:
Dimensions (mm): 1, 480 x 860 x 760

Conveyance:
Qty/20' FCL: 30pcs
Qty/40' FCL: 66pcs
Qty/40' HQ: 66pcs
