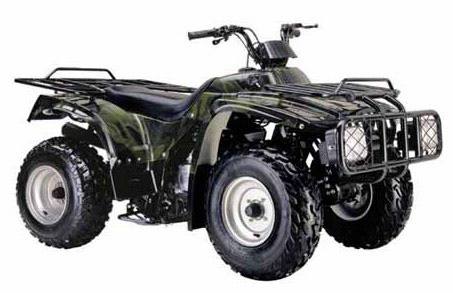

ATV (200ST-2)

Specifications

Prod Model:	200ST-2

Product Description

Parameter of Engine
Engine Model: 169FML
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore xStroke: 69x53(mm xmm)
Ignition C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 10. 8/8000(Kw/r/min)
Max. Torque: 13/5500(N. M/r/min)
Impression Ratio: 9. 2: 1
Starting Type: Electric
Max. Speed: 70(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noise: 80(dB)
Clutch: Manual clutch
Transmission: 5 speed, Rotary
Parameter of Motorcycle
Dimension: 1990x1050x1180(LxWxH mm)
Wheel Base: 1180(mm)
Gross Weight: 243(Kg)
Dry Weight: 215(Kg)
Transmission Type chain Drive& Reverse
Tyre and Rim F.: 23x7-10 / R.: 22×10-10
Brake Style F. Drum / R. Drum
Absorber Style F.: Independent Hanging
Displacement: 233ml
Oiltank Capacity: 8(L)
Climbing Ability: 30'
Max. Load: 200(Kg)
Packing Vol,: 1980x1000x1000(LxWxH mm)
Container Capacity 40'H: 35Unit 20': 12 Unit
