Specifications

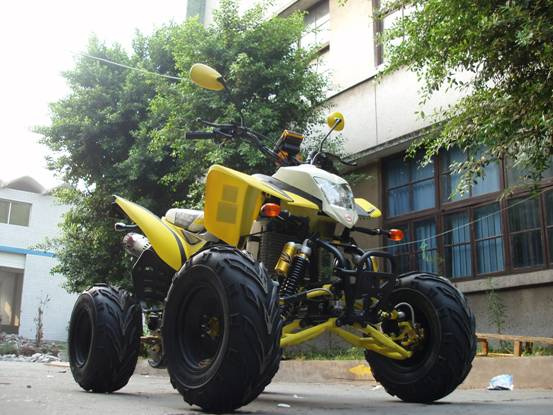

| Prod Model: | 200S-7 |
|---|
Product Description
1) Engine type: single cylinder, water-cooled, 4-stroke2) Ignition mode: CDI
3) Compression proportion: 9.2:1
4) Start mode: electric
5) Fuel tank capacity: 4L
6) Transmission mode: chain
7) Power: 9.5kW/7,500rpm
8) Max. torque: 12.1N.m/6,000rpm
9) Min. ground clearance: 100mm
10) Max. speed: >80km/h
11) Power source: 12V, 9Ah
12) Transmission: 4 gears with one reverse gear, manual clutch
13) Cylinder size: 63.5 x 62.2mm
14) Engine oil: 0.9L
15) Lubrication: press splash
16) Displacement: 197ml
17) Parking trig: mechanical lock
18) Gas cylinder number: 1
19) Front wheel: 21x 7-10
20) Rear wheel: 20 x 10-10
21) Break type (F/R): disc / disc
22) Front hanging: double arm-swing
23) Rear hanging: integral
24) Product dimensions: 1,680 x 1,115 x 1,120mm
25) Wheelbase: 1,160mm
26) Height of seats: 850mm
27) Dry weight: 167kg
28) Load capacity: 105kg
29) Min. turning radius: 2,650mm
30) Max. number of riders: 1
