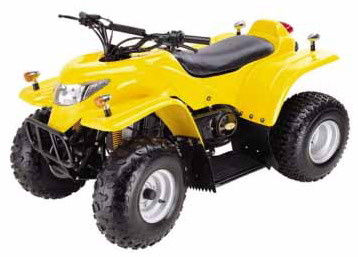

Home Chongqing Xinben Motor Co., Ltd. ATV (150ST-B)
Specifications
| Prod Model: | 150ST-B |
|---|
Product Description
Parameter of EngineEngine Model: 1P57QMJ
Engine Style: Single Cylinder, Air-cooled, 4-stroke
Bore x Stroke: 57.4x57.8(mm xmm)
Ignition: C. D. I.
Lubrication: Pressure/ Splash
Max. Power: 7.0/7000(Kw/r/min)
Max. Torque: 8.8/5500(N. M/r/min)
Impression Ratio: 8.8: 1
Starting Type: Electric
Max. Speed: 55(Km/H)
Oil Consumption: 365(g/Kw. H)
Max. Noice: 80(dB)
Clutch
Transmission: CVT
Parameter of Motorcycle
Dimension: 1500x850x960(LxWxH mm)
Wheel Base: 1050(mm)
Gross Weight: 145(Kg)
Dry Weight: 125(Kg)
Transmission Type
Tyre and Rim: F.: 19×7-8/R.: 18×9.50-8
Brake Style: F. Drum/R. Disc
Absorber Style: F: Independent Hanging/R.: Middle Absorber
Displacement: 149.5ml
Oiltank Capacity: 4.5(L)
Climbing Ability: 25'
Max. Load: 95(Kg)
Packing Vol: 1480X835X760(LXWXH mm)
ContainerCapacity: 40': 66 Unit; 20': 30 Unit
