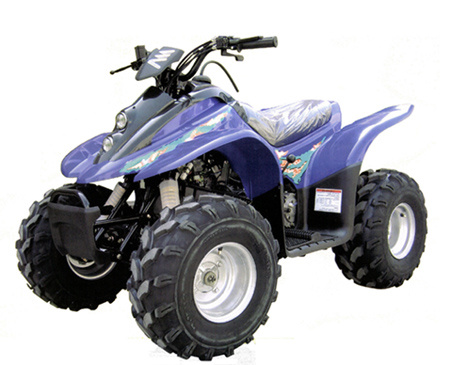

ATV(100/125/150cc)

Specifications

Prod Model:	150ATV-T

Product Description

ENGINE type: Air/Fan-cooled,4-stroke,Single-Cylinder
Displacement: 97/124.6/146.6
Bore/stroke: 46.2*57.8/52.4*57.8/57.4*57.8
Compression Ratio: 9.2:1/9.5:1
Max torpue: 5.2(6000r/min)/7.2(4500r/min)/7.6(6000r/min)
Carburetor: VM16-462
Fuel capability: 5.8L
Lubrication: Pressure Splash
Starting: Electric/kick
Transmission: CVT-Belt Automatic

Suspensions
Front suspension: A-arm
Rear suspension: Swing-arm
Front trave: 40
Rear trave: 50
Brakes
Front: Dual mechanical Drum
Rear: Mechanical Disc,Single
Tires
Front: 19*7-8 20±3kPa
Rear: 18*9.5-8 25±3kPa

Overall Dimension: 1450(L)*890(W)*940(H)
Wheelbase: 990
Seat Height: 670
Ground Clearance: 110
Net weight: 110
Max load: 75
Top Speed: 56Km/h
Attachment: Reverse System is Available to Request
