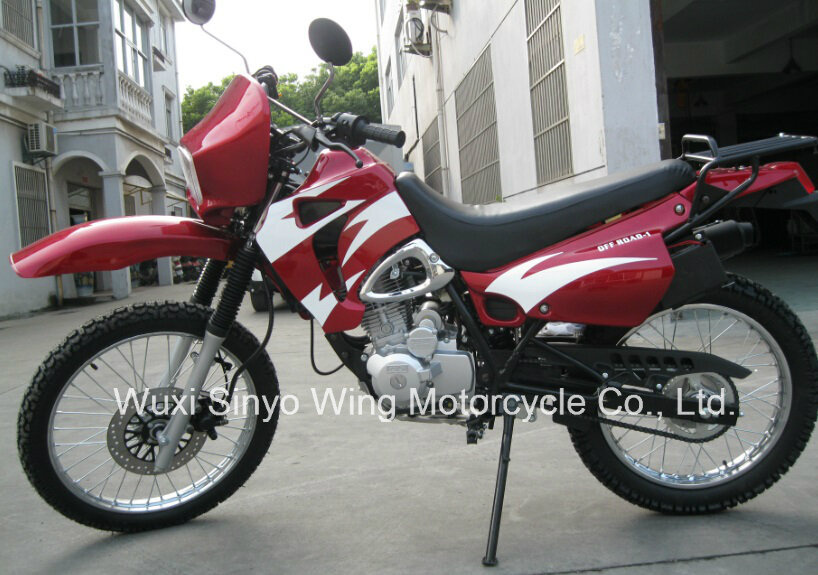

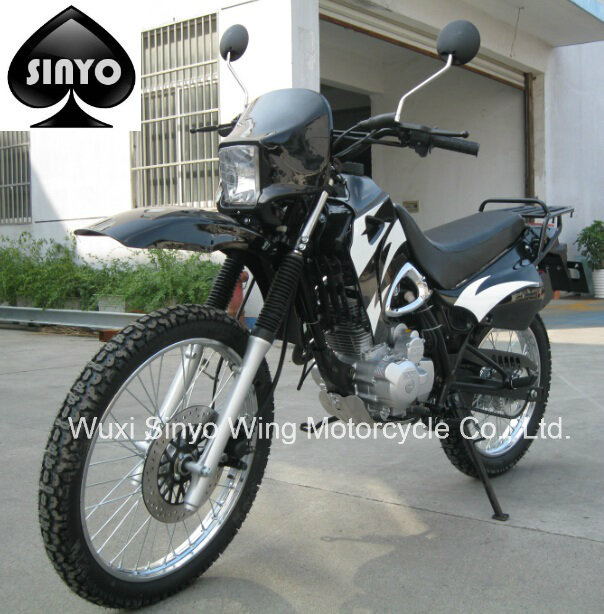

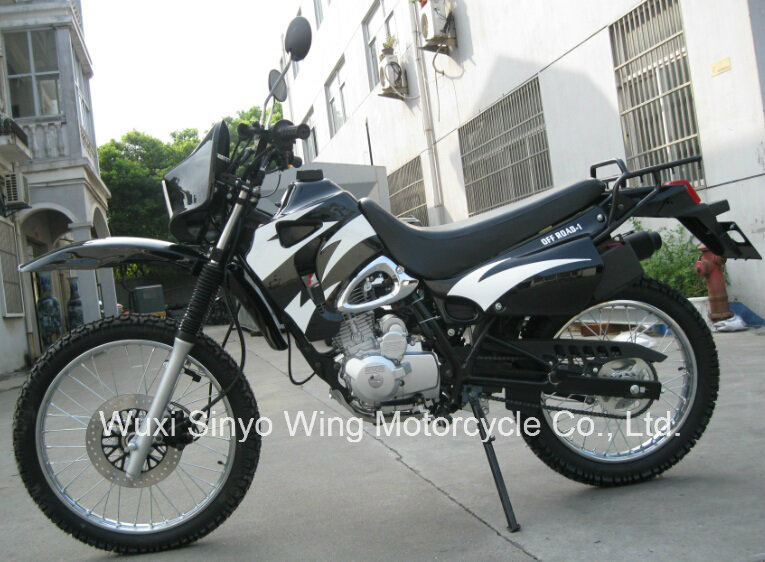

All Terrain Classic Gy off Road
| Price: | US $ 560-580unit |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 75/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | GY (OFF ROAD-1) |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 2200×880×1230mm |
| Engine Brand: | Lifan/Zongshen |
| Loading: | 30 Units/20 Ft 96 Units/ 40hq |
| Brand Name: | Sinyo Wind/ OEM |
| Type: | Dirt Bike |
| Displacement: | 126-250CC |
| Engine Type: | 4-Stroke |
| Fuel: | Gas / Diesel |
| Certification: | COC |
| Condition: | New |
Product Description
| DIMENSIONS | |
| Displacement | 149.4ml |
| Engine | 1 Cylinder, 4 Stroke |
| Bore & Stroke | 62×49.5 |
| Cooling System | Air Cooled |
| Compression Ratio | 9.2:1 |
| Fuel feed | 90# |
| Max Power( Kw/rpm) | 8.8/8500 |
| Max Torque(N.M/rpm) | 11.2/6500 |
| Max Speed | 95 km/h |
| Fuel consumption | 2.2L/100KM |
| Ignition | CDI |
| Transmission | Chain |
| Fuel tank capacity | 9L |
| Starting System | Electric+kick start |
| Front Brakes | Disc brake |
| Rear Brake | Drum brake |
| Front suspension | Hydraulic Suspension |
| Rear suspension | Hydraulic Suspension |
| Front wheels | 2.75-21 |
| Rear wheels | 4.10-18 |
| BASIC SPECIFICATION | |
| Ground clearance | 250 mm |
| Wheel base | 1270 mm |
| Payload | 150kg |
| Net Weight | 126kg |
| Gross Weight | 141kg |
| L*W*H | 2200×880×1230mm |
| Packing size | 1820*460*860mm |
Spec and option
1,It can match multicolor and stickers
2,we can do 50CC power, also we can do 125CC,150CC,200CC and 250CC 1 Cylinder,250CC 2 Cylinder,300CC Air cooled and 300CC Water cooled models.
3,Front and rear vacuum tire: durable, fasten, balanced, and beautiful. The tire is wear-resisting and aiti-explosion.
4,Front and rear disc brake has high safety performance and has no noise
5,The engine can install CGB or CBB engine.
6.we can install digital speedmeter,inverted shock absorber, double muffler

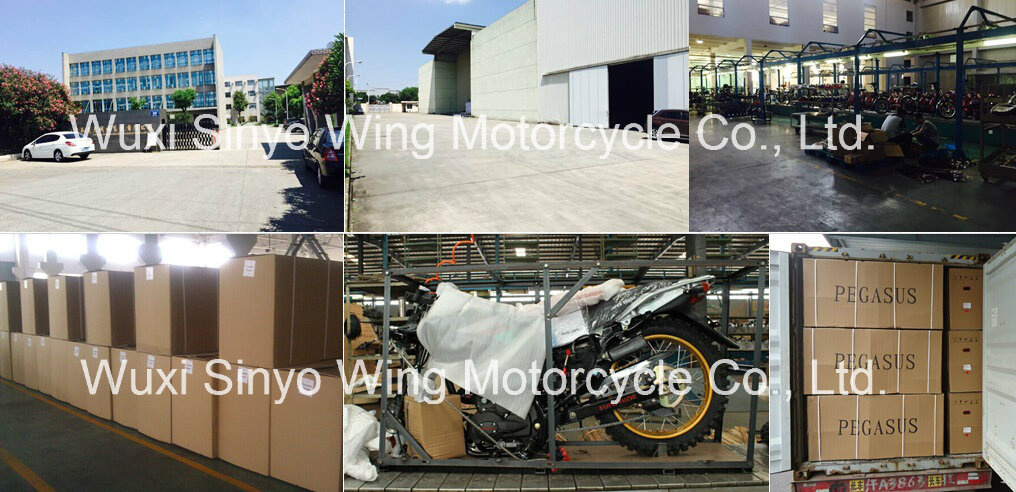

Packaging & Shipping
We supply carton packing with iron stand for CBU or SKD, engine package of CKD order use carton packing and be separated to the body part. Body parts of CKD are packaged with carton or with plywood box one unit by one package.
Our Services
1.We supply the whole set of spare parts of motorcycles, from Engines to Screws.
2.We guarantee 100% rate of qualified products in your factory.
3.Our engineers have more than 20 years experience in motorcycle production.
4.We guarantee 30 days of delivery time.
5.We guarantee that the vehicles for free service of 12 months or 12000 miles.
Company Information
Wuxi Sinyo Wing Motorcycle Co., ltd is located in Wuxi, Jiangsu Province, specialized in motorcycles, scooters, tricycles,E-scooters and CKD products. Our company has professional facilities, technologies and inspectors who have been working in this field for long years and could share the correct advice with clients!
