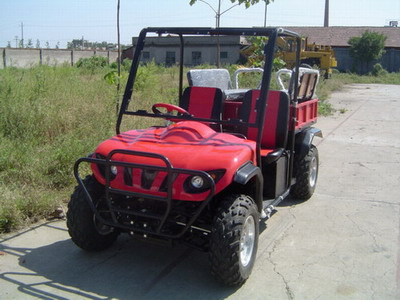

800cc Utility ATV(FLZ650)

Specifications

Prod Model:	ATV0002

Product Description

Type: 2-Bore, 4-Stroke, Liquid-cooled
Bore x Stroke: 76mmX71mm
Displacement: 644 cc
Compression ratio: 8. 4: 1
Max Power: 20. 6kw/5300rpm
Maximum Torque: 44/2700~3300Nm/r/min
Starting: -Electric
Ignition: C. D. I
Lubrication: Force & Splash
Transmission: Manual clutch, 4 shift/Reverse
Lubricate oil: SAE-15W/30
Fuel tank: 28. 0L
Climbing: 30
Top speed: 58 miles/h (or limited as customers require)
Front and rear tire: 25X10-12 /25X8-12
Front Suspension: Independent Dual A-Arm
Rear Suspension: Independent Longitudinal Control Arm
Final Drive: Shaft driven
Overall dimensions (L x W x H): 2, 830 x 1, 340 x 1700mm
N. W: 420kg G. W: 450kg
