Specifications
Prod Model: |
LG800E |
Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East |
Engine: |
800cc Chery E.F.I Engine |
Drive Model: |
4X2/4X4 |
Brakes: |
Hydraulic Disc Brake |
Wheels: |
Alloy Wheel Rims |
Age: |
Adults |
Maximum Speed: |
>90 km/h |
Transmission: |
Shaft |
Start-up: |
Electric |
Kind: |
Gear |
Certification: |
EPA |
Displacement: |
800CC |

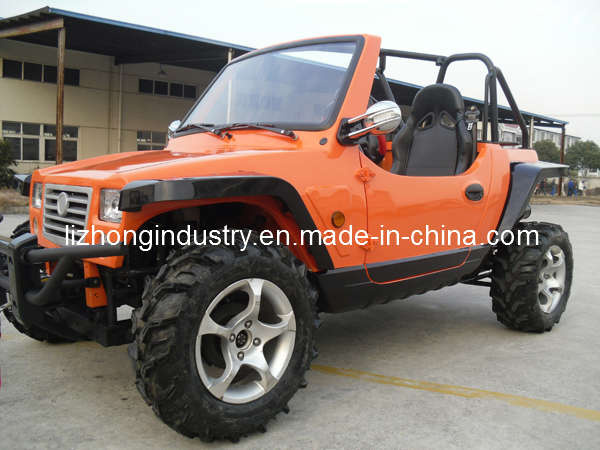

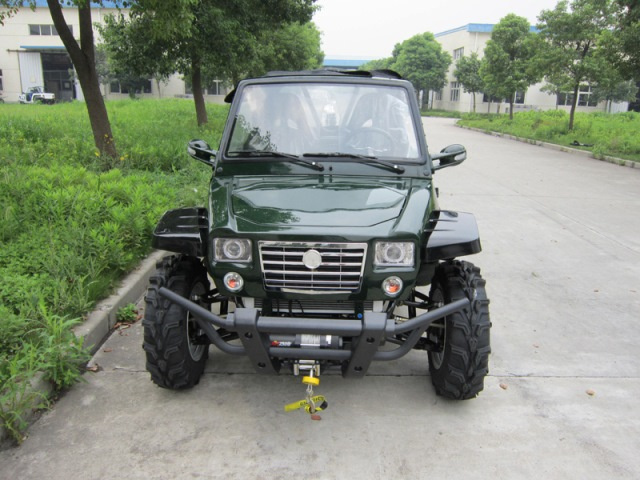

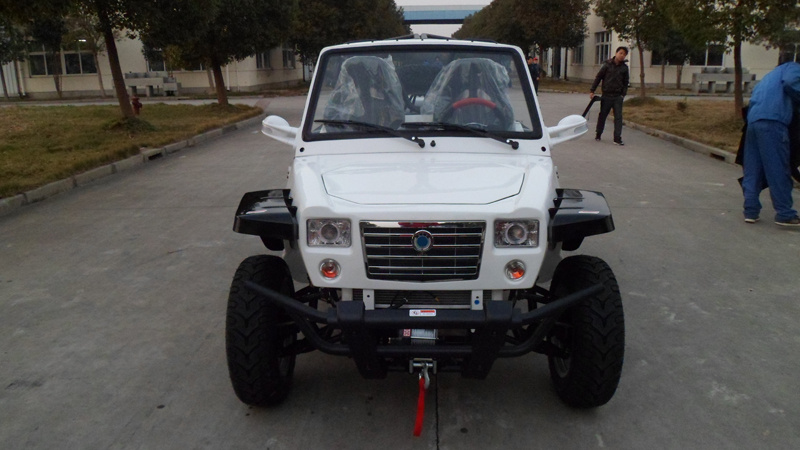

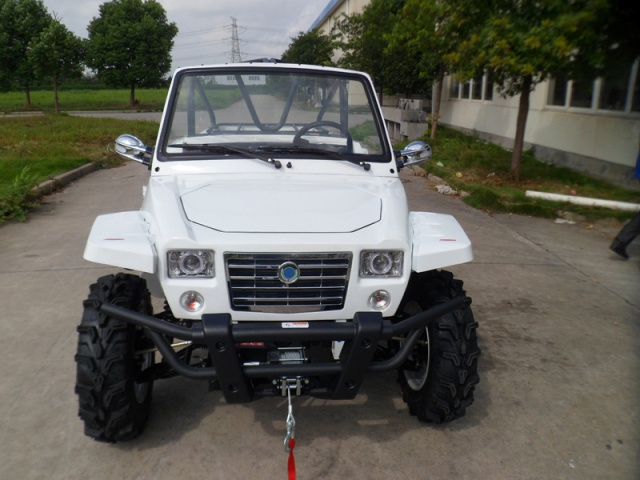

Product Description
1): 2011 new desgin
2): EPA approved
3): Openable side door, easy to get in
4): With steel cage, protect people when turnover
5): Tough bumper
Model Type: Lubrication: SAE 15W-40/SF
Available Color: Black, Blue, Red, White Transmission: 4-MT with reverse
Size: 3130mm x 1565mm x 1510mm Maximum load: Double seats/250kg
Wheelbase: 2180mm Fuel tank: 24L
Front track: 1360mm Climbing: 25'-30'
Rear track: 1360mm Top speed: 85km/h (or limited as customers request)
Ground clearance: 240mm Front/Rear brake: Hydraulic disc, right foot control
Engine type: L3, 12 valves, DOHC Front/Rear tire: AT27X8-14/AT27X11-14
Engine capacity: 800CC Final drive: Shaft drive
Bore x Stroke: 72mm x 66.5mm Carton size: 2950mm x 2115mm x 895mm
Corrected compression ratio: 9.5: 1 Net weight: 580kg (EEC: 550kg)
Max output power: 39kw/6000rpm Gross weight: 640kg
Max torque: 70Nm/3500-4000rpm Quantity: 11PCS/40HQ; 4PCS/20GP
Starting: < 10s Optional parts: Electric winch, MP3 with woofer
Ignition: C. D. I
