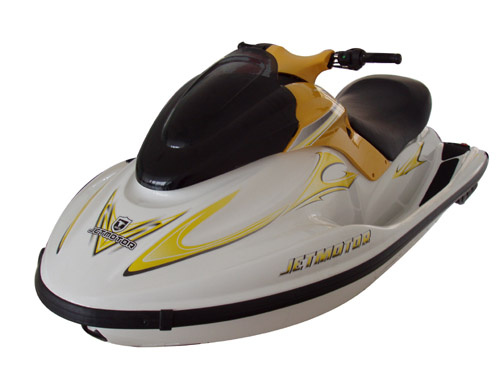

760cc, Two Cylinders, Water-Cooling, 2 Stroke Jet Motor (FJ760)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | FJ760 |
|---|
Product Description
Maximum people on board: 2 personsEngine: 760CC, two cylinders, water-cooling, 2 stroke
Displacement: 754 cc / 46. 0 ci
Compress ratio: 6. 6: 1
Lubrication system: Variable oil injection
Oil capacity: 5. 5L
Starting system: Electric start
Spark plug: 0. 6 mm - 0. 7 mm / 0. 023 in - 0. 027 in
Batteries: 12V, 19Ah
Propulsion system: Jet pump
Transmission: Direction drive from engine
Jet thrust nozzle angle: 23 +23 degree
Recommended fuel: Regular unleaded gasoline
Oil tank capacity: 5. 5L (1. 45 US gal, 1. 21 Imp gal)
Dimension(L*W*H): 2930*1150*1020mm
Maximum load capacity: 160KGS
Bore & Stroke: 64. 0 mm X 68. 0 mm / 2. 520 in X 2. 677 in
Maximum output: 66 kw @ 6, 350 rpm / 88 hp @ 6, 350 rpm
Maximum fuel consuption: 38 LPH / 10 GPH
Cruising range at full throttle: 1. 2hr.
Trolling speed: 1500-1800 r/min.
Ignition system: Ignition CDI
Spark plug gap: 0. 7-0. 8mm (0. 028-0. 031 in)
Charging system: Flywheel / Magneto
Jet pump type: Axial flow, single stage
Impeller: Anticlockwise (from back)
Trim nozzle angle: -5, 0, 5, 10, 15 degree
Fuel tank capacity: 60L (15. 9 US gal, 13. 2 Imp gal), reserve 10L (2. 6 US gal, 2. 2 Imp gal)
Max speed: 90Km/h
N. W. /G. W.: 268Kgs (591lb)/ 300Kgs
Qty. /Container: 4pcs/20GP; 8pcs/40GP; 12pcs/ 40HQ
