Specifications

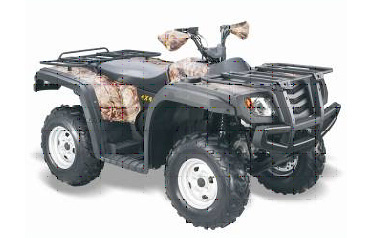

| Prod Model: | 700 ATV |
|---|
Product Description
SpecificationsENGINE
Type 686cc, Water cooled, 4-stroke, 1-cylinder
Bore x Stroke 102mm x 84mm
Compression Ratio 9.1: 1
Carburetion PD33G
Ignition CDI
Starting Electric
Transmission L-H-N-R-P
Drive Train Axle
CHASSIS
Suspension Independent double swing arm
Suspension/Rear Independent double swing arm
Brakes/Front Dual ventilated hydraulic disc
Brakes/Rear Ventilated Hydraulic disc
Tires/Front AT25 x 8-12 radial
Tires/Rear AT25 x 10-12 radial
DIMENSIONS
L x W x H 2250mm x 1210mm x 1225mm
Seat Height 870mm
Wheelbase 1365mm
Ground Clearance 260mm
Fuel Capatity 17L
Dry Weight 319kg
OTHER
Packing Size 2290mm x 1290mm x 850mm
Loading Quantity 8pcs/20'GP; 18pcs/40'GP; 27pcs/40HQ
Lighting 12V35W/35W x 2, 12V5W x 2(front); Turning light 12V10W x 4(F&R); 12V. 5W/21W x 1(rear)
Warranty 6 months(limited factory warranty)
