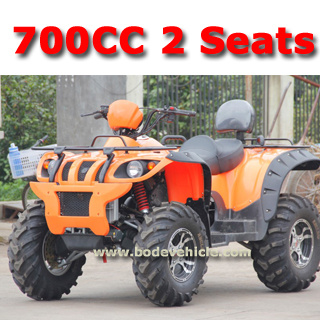

Home Jinhua Bojo Technology Co., Ltd. 700cc 2 Seats Quad ATV
700cc 2 Seats Quad ATV
| Price: | US $ 3680-3980/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 11/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | MC-399 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seat: | 2 Seats |
| Transmission System: | Shaft Drive |
| Transmission Type: | Automatic |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | >400CC |
| Structure: | Without Door |
| Maximum Speed: | >75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Power: | >1000W |
| Brand: | Bode |
Product Description
700cc 2 Seats QUAD ATV SpecificationNo. Category Data
1 ATV L× W× H, mm 2250x1150x1200
2 Wheelbase, mm 1460
3 Tread, mm Ft920, Rr880
4 Min. Clearance, mm 230
5 Min. Turning Radius, mm ≤ 4800
6 Handlebar swing angle, (° ) 30± 3
7 Net Weight, kg 360
8 Loading Capacity, kg 220
9 Top Speed, km/h 120
10 Brake System(Ft/Rr) Linkage Disc Brake
11 Brake Operation(Ft/Rr) Hand & Foot brake
12 Rim(Ft/Rr) Alloy Wheel Rim
13 Tyre(Ft/Rr) Ft: 26x9-12, Rr: 26x11-12
14 Tyre Pressure(Ft/Rr), kPa 150
15 Transmission Shaft Drive
16 ENGINE Model Number bode1100MR
17 Brand BODE
18 Type Single Cylinder, 4-Stroke, Water-cooled, 4-Valve
20 Bore× Stroke, mm 100x84
21 Cylinder Volume, ml 659.4
22 Compression Ratio 10.2: 1
23 Rated Power/Rev, kw(r/min) 30/550
24 Maximum Net Power/Rev, kw(r/min) 32/5800
25 Maximum Torque/Rev, kw(r/min) 56/5000
26 Min. Fuel Consumption Rate, g/(kw. H) 270
27 Min Steady Rev with No-Load, r/min 1500
28 Fuel Type No. 93 Unleaded Petrol
29 Lubrication Pressure/Splash
30 Lubricating Oil SF15W-40
31 Clutch Automatic Centrifugal
32 Start Mode Electric
33 Ignition DC-CDI
34 Carburettor Vacuum Diaphragm
35 Spark Plug K6RTC
36 Battery GT20-4
37 Headlight 12V 35Wx2
Atv, Quad go kart and Buggy HS code: 8703101100
