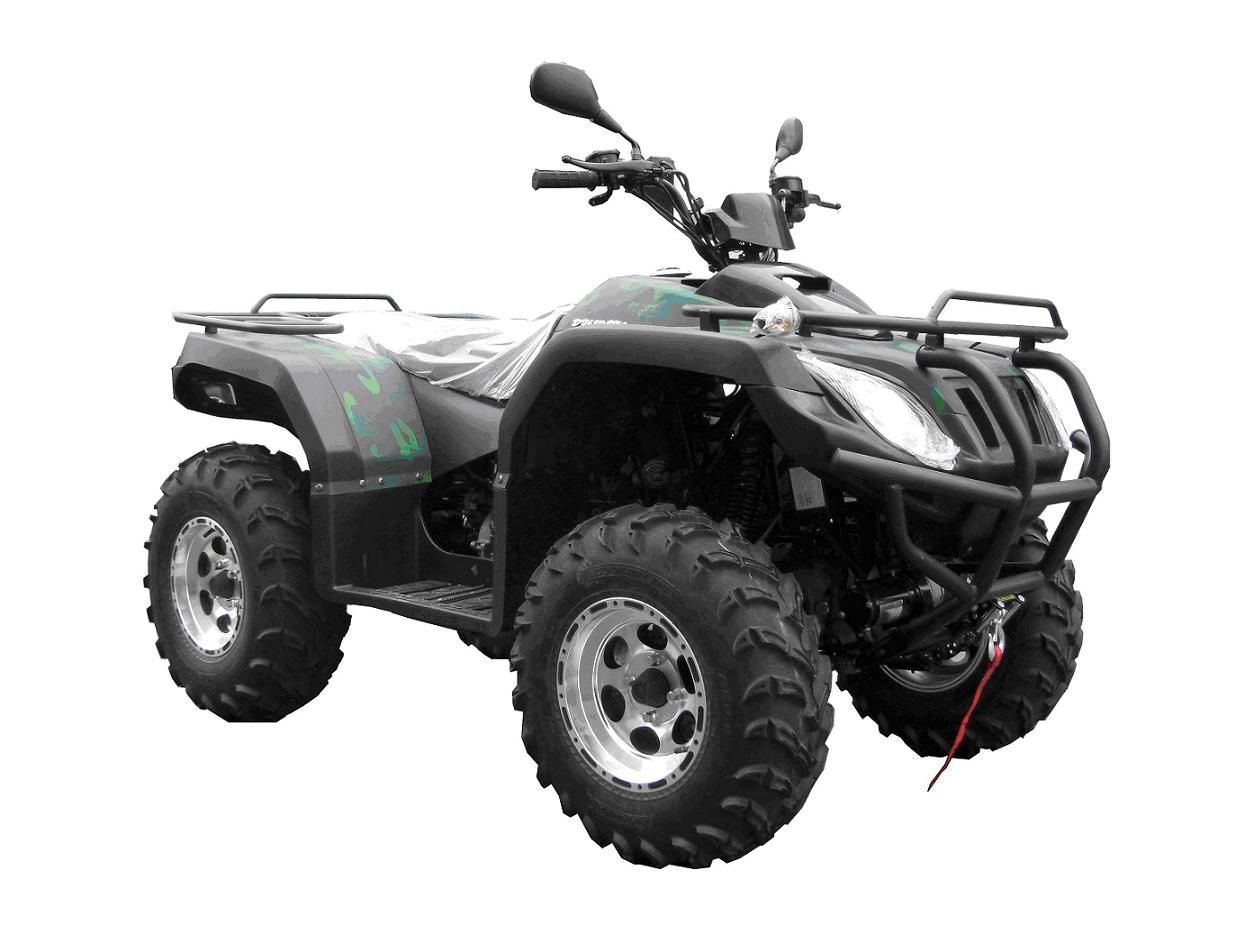

650cc ATV / Quad (4*4) with EEC (DF650ATV-B)

Specifications

Prod Model:	DF650ATV-B

Product Description

DF650 ATV-B EEC
1) Engine type: Two Cylinder, 4-stroke, water-cooled, 4 forward gears with reverse
2) Displacement: 644cc
3) Max Torque: 49N. M/2700-3300r/min (Europe standard: 39.0N. M/2700-3300r/min)
4) Max Power: 20.6kw/4500r/min (Europe standard: 15kw/4500r/min)
5) Compression ration: 9.0: 1 (Europe standard: 8.4: 1)
6) Ignition system: Battery
7) Oil capacity: 15L
8)Economical oil exhaust(L/100km): 5.5
9) Max speed: 80km/h (Europe standard: 75km/h)
10) Starter system: Electric
11) Transmission: Dual independent shaft drive
12) Brake Type: Hydraulic disc brake / Hydraulic disc brake
13) 4*4 system: On-command 2WD/4WD and Command front diffential lock
14) Wheelbase: 1385mm
15) Ground clearance: 290mm
16) Tires (front / rear): 25 x 8-12 / 25 x 10-12
17) N. W.: 375KGS
G. W.: 425KGS
18) Product dimension: 2215*1195*1220
19) Carton dimension ( Don't take down wheels ): 2250*1225*1080
Carton dimension ( Take down wheels ): 2250*1160*920
20) Qty/20FT: 8units ( take down wheels: 10 units )
Qty/40GP: 18units ( take down wheels: 20 units )
