Specifications
Prod Model: |
MS-001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Carton Size: |
1355 X 650 X 1200mm |
Driving Type: |
Electric |
Loading Type: |
Sitting Type |
Weight: |
108kgs |
Style: |
Midsize |
Product Description

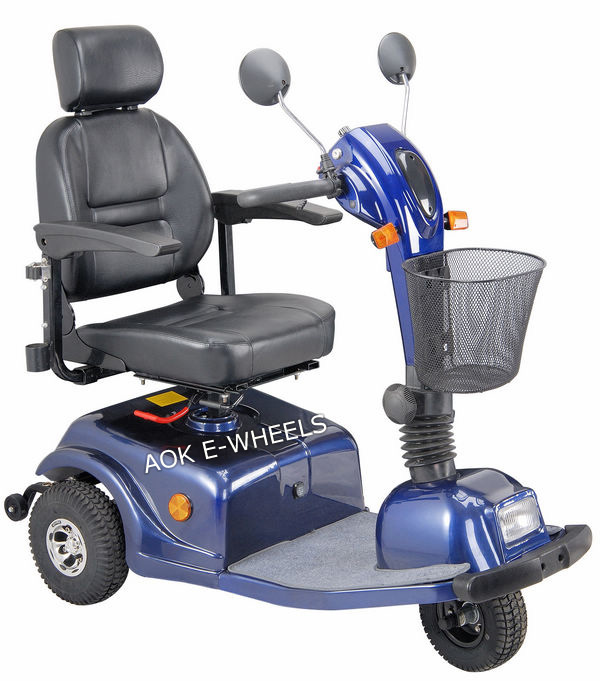

600W 24V Taiwan Motor Electric Mobility Scooter with PG/Curtis Controller
Specification
Specification Details: | Motor | 24V 600W (Made in Taiwan) |
Battery | 12V 40Ah x 2 lead acid battery |
Controller | PG/Curtis |
Charger | 24V4A battery charger |
Charge time | 6-8h recommended |
Front Tyres | 9"*3.50-4 |
Rear Tyres | 10"*3.00-4 |
Performance & Main components
Performance & Main components: | Max. forward speed | 10km/h(adjustable) |
Max. backward speed | 6-8km/h(adjustable) |
Ground clearance | 70mm/ 2.76in |
Turning radius | 1.1m/43.3in. |
Braking distance | 1.4m/55.12in |
Climbing capability | 12° |
Packaging&Delivery
Packaging Details: | Weight capacity | 150Kg/330.69lbs |
Net weight | 88kg/194lbs(with 2 batteries) |
Battery weight | 13.8kg/30.43lbs x 2 |
Dimensions | 1355 x 650 x 1200mm |
53.35 x 25.6 x 47.24in. |
Delivery Details: | 40 days |
