Specifications
Prod Model: |
KINGMAX 600SE |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Shaft Drive |
Transmission Type: |
Automatic |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Displacement: |
600CC |
Product Description
Manufacturer of ATV, quad, go kart, UTV, ATV quad, EEC ATV, quad bike, dune buggy, utility vehicle, ATV parts, ATV accessories.

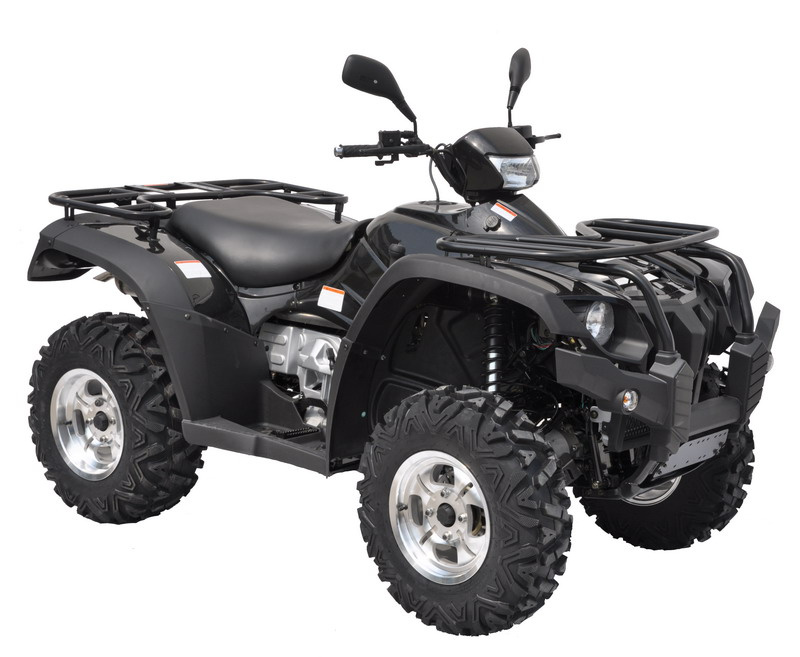

ATV UTILITY 600CC CVT 4X4
- Water-cooled 600CC EFI Engine
- CVT Automatic with High-Low
- Shaft Drive, 2WD & 4WD Switch
- Independent Rear Suspension (IRS).
ENGINE |
|
Engine Type |
2 Cylinder, V-Twin, 4-Stroke, SOHC |
Engine Displacement |
552cc |
Bore x Stroke |
70 X 71.7mm |
Fuel System |
Delphi Electronic Fuel Injection |
Cooling System |
Liquid-Cooled |
Ignition |
ECU Control Start |
Max. Power Output |
27kw/6500r/min |
Max. Torque |
45N. M/5000r/min |
Fuel Capacity |
18L |
Lubrication System |
Splash & Press |
Starting System |
Electric Start & Hand Pull Start |
Transmission Mode |
Automatic CVT with H/L/N/R |
Final Drive |
Shaft Drive 4WD |
Shift Switch(2WD/4WD) |
YES |
Battery |
12V 14Ah |
Wheels & Brakes |
|
Tyres Front |
25X8-12 |
Tyres Rear |
25X10-12 |
Parking |
Mechanics Parking Brake |
Suspension Front / Rear |
Twin-A Arm Independent Suspension |
Brakes Front / Rear |
Hydraulic Disk Brake |
Dimensions & Weight |
|
Product Dimension(LxWxH) |
2, 150x1, 195x1, 210mm |
Carton Dimension(LxWxH) |
2, 300x1, 370x865mm |
Seat Height |
905 mm |
Wheelbase |
1, 295mm |
Ground Clearance |
250mm |
Dry Weight |
365kg |
Gross Weight |
440kg |
Container Loading |
8 Units / 20' GP; 26 Units / 40' HQ |
