Specifications
Prod Model: |
HD50QT-16/HD125T-16 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Speed: |
>50km/h |
Certification: |
COC |
Engine: |
4 Stroke |
Maximum Loading Capacity: |
≥120kg |
Fuel Tank Capacity: |
>8L |
Folded: |
Unfolded |
Displacement: |
50cc-125cc |
Engine Siz: |
50cc &124.6cc |
Max Power: |
6.5kw/7000rpm |
Product Description

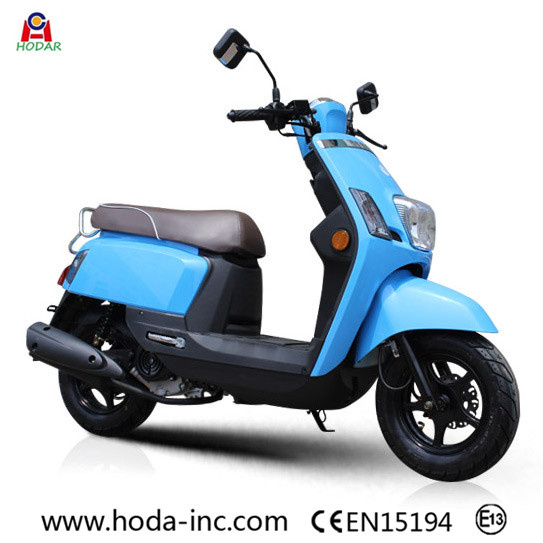

2015 New Model: HD50QT-16/HD125T-16
1. General Data:
Dimension 1860*690*1150(mm)
Wheel Base 1340(mm)
Cross Weight 107(kgs)
Dry Weight 82(kg)
Tire(Front/Rear)3.50-10
Brake Style(Front/Rear) Disk/Drum
Displancement 49.5(ml)
Fuel tank capacity (L) 6.0±0.5(L)
Engine Modle 139QMB
Engine Style Single Cylinder,
Air-cooled,4- stroke
Ignition C.D.I
Container Capacity 104units/40HQ
2. Certificate : EEC/COC/ CCC/EPA3. Specification From:ENGINE TYPE | 50cc, 4 Stroke |
Displacement | 49.5 |
Engine | Single Cylinder, 4 Stroke |
Bore & Stroke | 39×41.5 |
Cooling System | Air Cooled |
Compression Ratio | 10.5:1 |
Fuel feed | 90# |
Max Power( Kw/rpm) | 2.5/7500 |
Max Torque(N.M/rpm) | 2.8/5500 |
Max Speed | 50 kmph |
Ground clearance | 110mm |
Fuel consumption | 2.0L/100KM |
Drive Train | CVT |
Ignition | CDI |
Transmission | Belt |
Fuel tank capacity | 5L |
Starting System | Electric+kick start |
Front Brakes | Disc brake |
Rear Brake | Drum brake |
Front suspension | Hydraulic Suspension |
Rear suspension | Hydraulic Suspension |
Front tires | 3.50-10 |
Rear tires | 3.50-10 |
Wheel Base | 1260 mm |
Seat Height | 850mm |
Payload | 75kg |
Net Weight | 90 Kg |
Gross Weight | 105 Kg |
Packing type | Steel + Carton |
Packing size | 1900*570*860 mm |
20' container | 34 units |
40' HQ container | 104 units |
