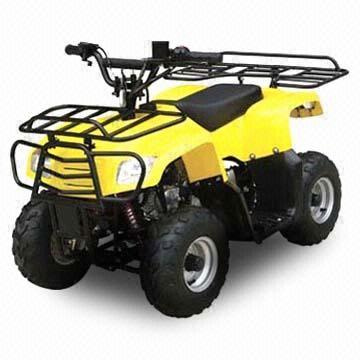

50cc Mini ATV / Quad for Children (ATV-50C)

Specifications

Prod Model:	ATV-50C

Product Description

50cc MINI ATV / QUAD for Kids
Item Number: ATV-50C
Engine: 50cc, single-cylinder, 4 stroke, 90cc/110cc is available
Max speed: 45kph
Max loading: 90kgs
Distance between axles: 710mm
Distance between front wheels: 430mm
Distance between rear wheels: 520mm
Ground clearance: 110mm
Tyres(F/R): 160/80-7; 160/80-7
Rated power and rotation speed: 2.3kw/8500rpm
Max torque and rotate speed: 2.7N. M/6500r/min
Compression ratio: 7: 01
Transmission: Fully auto clutch
Starting system: Electric start
Cooling system: Air cooling
Oil tank: 3L
Brake: Rear disc brake
Dimensions(LxWxH): 1160x770x700mm
G. W. /N. W.: 72kgs/90kgs
Packing size: 1160x760x620mm
Conveyance: 43pcs/20"FT; 88pcs/40"FT; 118pcs/40"HQ
