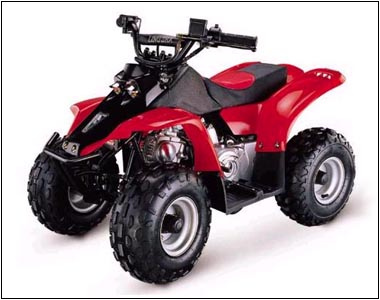

50cc Mini ATV (ATV50S-2)

Specifications

Prod Model:	ATV50S-2

Product Description

ATV50S-2 (Mini)
Engine Type:Single cylinder, air-cooled, 4-stroke, level engine.
Displacement(ml):50CC/70CC/110CC
BorexStroke:39.0x41.4mm
Standard Power:2.0kw/7500r/min
Max.Torque:2.5N.M/5000r/min
Starting:Electric
Drive:Chain drive
Brake:Rear disc
Brake Distance(m/30km):<4.00
Transmittion:Automatic transmittion
Clutch:Automatic clutch
Dimension(LxWxH)(mm):1090x670x750
Climbability:>30"
Front light:Duble
Front turning light:No
Max.Speed(km/h):>40
Net Weight(kg):98
Gross Weight(kg):124
Packing Size(mm):116X68X65CM
Container:48 units for 20"ft;102units for 40"ft ;136units for 40"HQ
