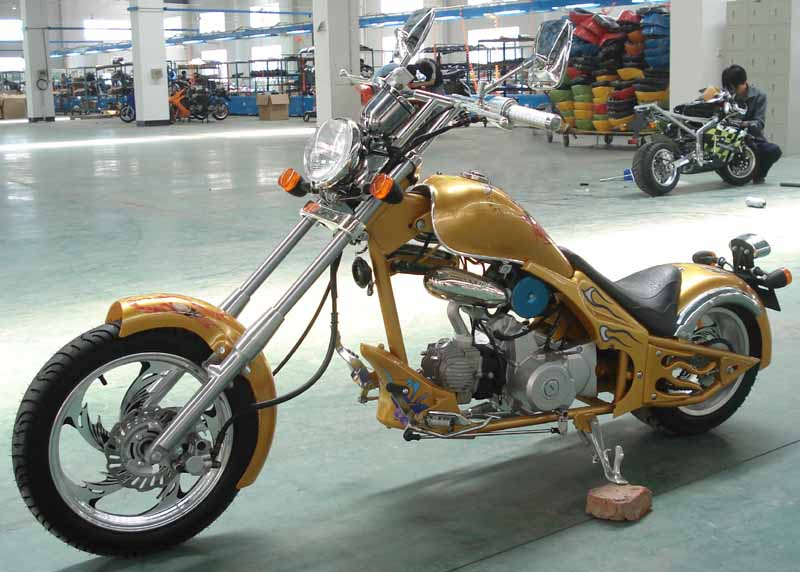

Home Fribest Industry and Trade Co., Ltd. 50cc EEC Chopper(FC303)
Specifications
| Prod Model: | FC303 |
|---|
Product Description
50CC,4-stroke,Single cylinder, air-cooling chopperLength x Width x Height: 1980mm x 730mm x 990mm
Wheelbase: 1480mm
Net weight: 71kgs
Payload: 150kg
Front wheel: 2.75-14
Rear wheel: 205/30-11
Ignition means: CDI
Speed, max: ≥45km/h
Braking distance: ≤7m(30km/h)
Climbablity: ≥15
Cylinder bore x stroke: 39mm x 40. 2mm
Compression ratio: 7.3: 1
Output, max: 2.6kw/8500rpm
Torque, max: 3.0N. m/7500rpm
Idling speed: 1400r/min+150r/min
Spark plug: A7TC XS
Spark plug gap: 0.6mm~0.7mm
Fueltank capacity: 5.5L
Ground clearance: 150mm
Quantity of loading: 164pcs/40'HQ
