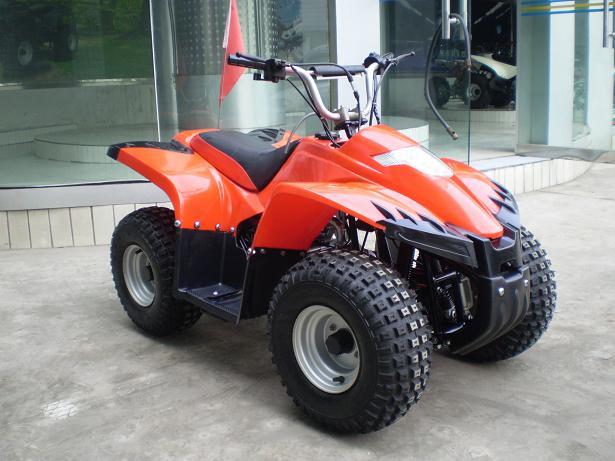

50CC/70CC Kids ATV (SJ50ST-8)
| Price: | Negotiable |
|---|---|
| Trade Terms: | by vessel |
| Min Order: | 36units |
Specifications
| Prod Model: | SJ50ST-8 |
|---|
Product Description
Model: SJ50ST-8Main Feature: 70cc, 4 stroke, electric start, upper located auto gear, chain drive, dual rocking arm, front drum&rear disc brake
Specifications:
Engine Type: 70cc, Single-Cylinder, Air-Cooling, 4-Stroke
Clutch: Automatic
Ignition Method: C. D. I.
Start Method: Electric
Transmission: Chain
Displacement(ml): 72
Bore*Stroke(mm): 47*41.4
Compression Ratio: 8.8: 1
Rated Power(kw/r/min): 3.4/7500
Maximum Torque(N. M/r/min): 4.5/6000
Lubrication: Splash
Gear: Automatic Gear
Dimensions(L*W*H)(mm): 1360*705*850
Wheel Base(mm): 870
Seat Height(mm): 580
Min. Turning Radius(mm): 1800
Min. Ground Clearance(mm): 160
Brake: Front Drum & Rear Disc
Front Wheel: 16*8-7
Rear Wheel: 16*8-7
Fuel Tank Capacity(L): 2.6
Engine Oil Capacity(ml): 800
Climbing Capacity: 15
Max. Load(kg): 110
Max. Speed(kw/h): 35
Net Weight(kg): 76
Gross Weight(kg): 85
