Home Zhejiang Kingruth Industry & Trade Co., Ltd. 50cc/70cc/90cc/110cc Mini ATV (ATV50-C)

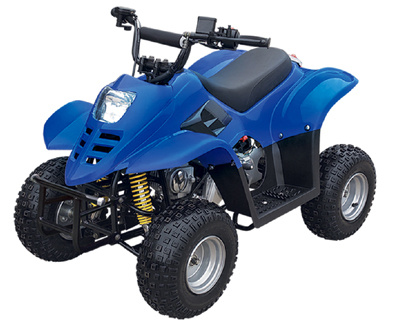

50cc/70cc/90cc/110cc Mini ATV (ATV50-C)
| Price: | Negotiable |
|---|---|
| Trade Terms: | By Sea |
| Min Order: | 5/Piece |
Specifications
| Prod Model: | ATV50-C |
|---|
Product Description
Quality ATV, Best Price in KingRuth CompanyATV50-C 50CC
Specification:
Dimension (L x W x H): 115 x 67x 57cm
2) Wheelbase: 900mm
3) Min ground clearance: 140mm
4) Rim type: Spoke
5) Dry weight: 98kg
6) Front/rear tire size and air pressure: 145/70-6
7) Rear disk brake
8) Max load capacity: 150kg
9) Max speed: 50km/h
10) Break performance: <=7m/30km/h
11) Max fork advancing angle: 10 degrees
12) Engine model: 1P39FMB
13) Engine type: Single-cylinder, air-cooled, four-stroke
14) Bore x stroke: 39.0 x 41.1mm
15) Displacement: 49ml
16) Compression ratio: 8.8: 1
17) Power: 1.6kw/7500r/min
18) Max torque: 2.2N. M/6000r/min
19) Starting mode: Electric starter
20) Ignition mode: CDI electronic ignition
Lading: 63pcs/20'ft, 102pcs/40'ft, 136/40'HQ
