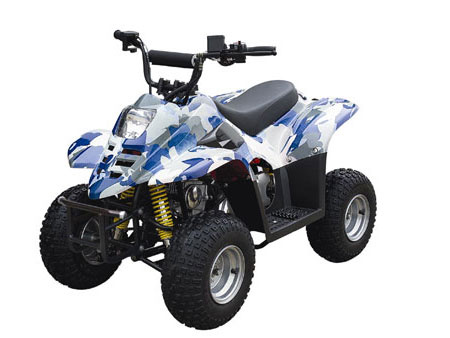

50CC, 70CC, 90CC, 100CC Air-Cooled ATV with EPA Approval

Specifications

Prod Model:	SL50ATV-3

Product Description

Engine Type: 97cc 4-stroke, air-cooled, fully- automatic
Bore*stroke: 52.4*49.5mm
Compression ratio: 8.8:1
Max torque and Rotate Speed: 5.5N.m/5500r/min
Max. power and rotation speed: 3.6kw/7500rpm
Start system: electric
Ignition: CDI
front/rear: NONE/disc brake
Front suspension: double A arm:
rear suspension: mono shock swing arm
Transmission: automatic, chain drive
Battery: 12V 4A
Front tire: 145/70-6
rear tire: 145/70-6
Dimension(L*W*H): 127*68*88cm
wheel base: 80mm
seat height: 600mm
ground clearance: 100mm
Fuel tank capacity: 3.2L
Max.load: 75kg
G.W./N.W.: 95kg/73kg
Carton size: 115*72*64mm
Load:
48pcs/20fcl
96pcs/40fcl
128pcs/40'HQ
Colours: red, blue, yellow, black,Green
