Specifications
Prod Model: |
HDM125E-20P |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Red,Black,Silver,Yellow,Blue,Orange,White |
Container Load: |
26PCS/20'gp 58PCS /40'hq |
Max Speed: |
21-50km/h |
Certification: |
COC |
Engine: |
4 Stroke |
Maximum Loading Capacity: |
75-120kg |
Fuel Tank Capacity: |
5-8L |
Folded: |
Unfolded |
Displacement: |
50cc,125cc,150cc |
Engine Siz: |
50cc,125cc,150cc |
Max Power: |
6.0/7500kw/(R/Min) |
Product Description
HDM125E-20P |
| 125CC |
|
|
Engine Type: 152QMI |
|
|
|
Engine Style: Single Cylinder, Four stroke, Air-cooling |
Displacement: 124.6ml |
Bore x stroke(mm): 52.4 x 57.8 |
Compression Ratio: 9.2:1 |
|
|
Max Power(kw/rpm): 5.3kw/7000(r/min) |
|
Ignition: CDI |
|
|
|
Economic Fuel Comsuption: 2.9L/100km |
|
Battery : 12V |
|
|
|
Fuel Tank: 6L |
|
|
Starting Type: electric and kick |
|
Overall Dimensions(mm):1980(L)×700(W)×1190(H) |
Wheelbase(mm): 1350mm Wheel: Aluminium |
Net weight(kg): 118 Muffler: Aluminium |
Max Load(kg): 150 |
|
|
Ground Clearance(mm): 150 |
|
|
Max Speed(km/h): ≥80 |
|
|
Front Tire: 130/60-13 |
|
|
|
|
Rear Tire: 130/60-13 |
|
|
|
|
Brake Mode: Front Disc, Rear Drum/Disc |
|
HDM150E-20P |
| 150CC |
|
|
Engine Type: 157QMJ |
|
|
|
Engine Style: Single Cylinder, Four stroke, Air-cooling |
Displacement: 149.6ml |
Bore x stroke(mm): 57.4×57.8 |
Compression Ratio: 9.2:1 |
|
|
Max Power(kw/rpm): 6.9kw/6700(r/min) |
|
Ignition: CDI |
|
|
|
Economic Fuel Comsuption: 2.9L/100km |
|
Battery : 12V |
|
|
|
Fuel Tank: 6L |
|
|
Starting Type: electric and kick |
|
Overall Dimensions(mm):1980(L)×700(W)×1190(H) |
Wheelbase(mm): 1350mm Wheel: Aluminium |
Net weight(kg): 118 Muffler: Aluminium |
Max Load(kg): 150 |
|
|
Ground Clearance(mm): 150 |
|
|
Max Speed(km/h): ≥85 |
|
|
Front Tire: 130/60-13 |
|
|
|
|
Rear Tire: 130/60-13 |
|
|
|
|
Brake Mode: Front Disc, Rear Drum/Disc |
|
HDM50E-20P |
| 50CC |
|
|
Engine Type: 139QMB |
|
|
|
Engine Style: Single Cylinder, two stroke, Air-cooling |
Displacement: 49.6ml |
Bore x stroke(mm): 39.0×41.5 |
Compression Ratio: 10.5:1 |
|
|
Max Power(kw/rpm): 2.2kw/7000(r/min) |
|
Ignition: CDI |
|
|
|
Economic Fuel Comsuption: 2.0L/100km |
|
Battery : 12V |
|
|
|
Fuel Tank: 4.5L |
|
|
Starting Type: electric and kick |
|
Overall Dimensions(mm):2025(L)×700(W)×1190(H) |
Wheelbase(mm): 1380mm Wheel: Aluminium |
Net weight(kg): 118 Muffler: Aluminium |
Max Load(kg): 150 |
|
|
Ground Clearance(mm): 150 |
|
|
Max Speed(km/h): <=85 |
|
|
Front Tire: 120/70-12 |
|
|
|
|
Rear Tire: 120/70-12 |
|
|
|
|
Brake Mode: Front Disc, Rear Drum/Disc |
|

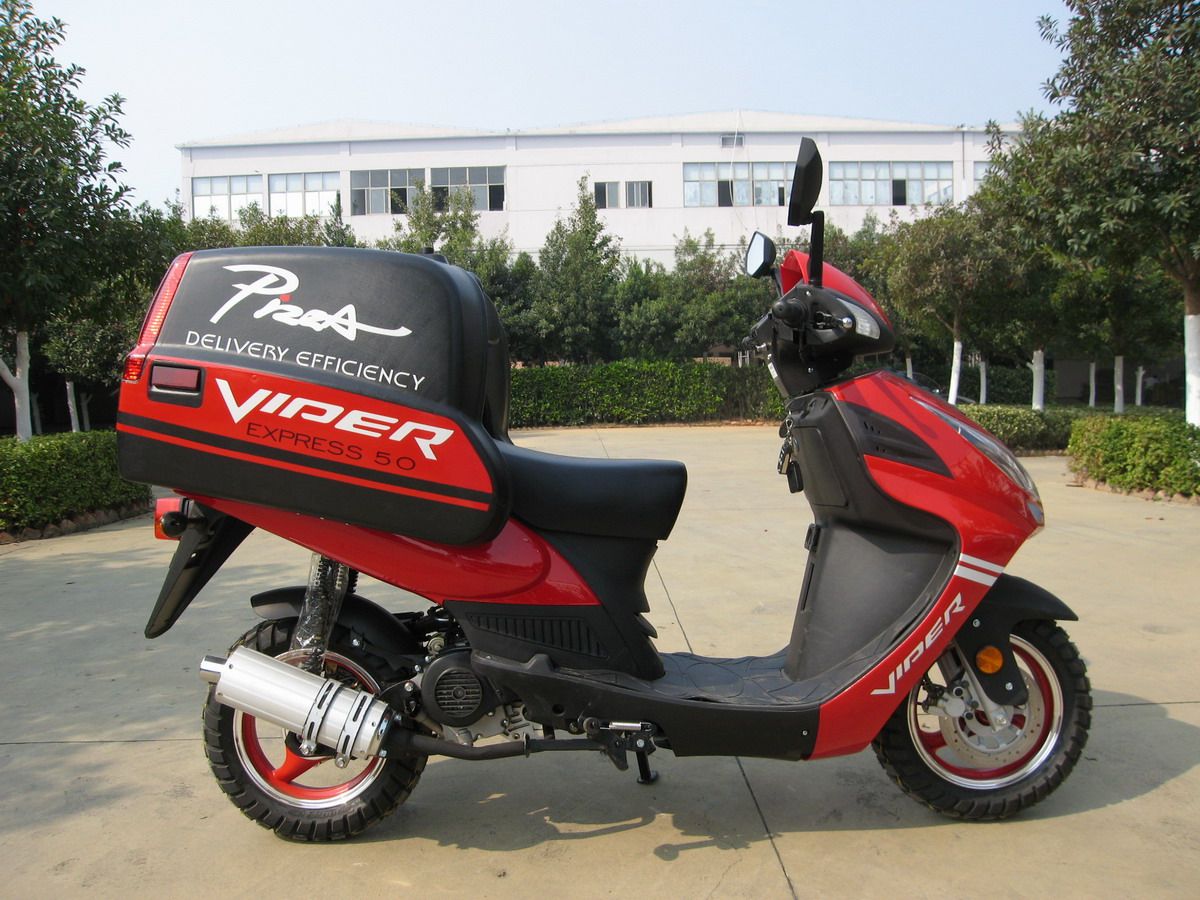

50cc 2 stroke,125cc and 150cc eec pizza motorcycle,
with new desigh
good sale at market
high quality with competitive price
fast delivery
strong export carton
EEC EPA DPT certofocate
